VXB

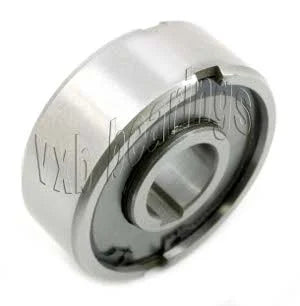

ASNU40 One Way 40x90x33 Bearing Support Required Backstop Clutch

$204.99
SKU: Kit18236_1
UPC: 00193019261392
Item: ASNU40 One Way Clutch Bearing
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 40mm x 90mm x 33mm/metric
ASNU40 One Way Clutch
40mm x 90mm x 33mm


ASNU40 is a one-way clutch, One way Sprag/Clutch Freewheel and also called as Backstops, ASNU40 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Item: ASNU40 One Way Clutch Bearing
  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 40mm x 90mm x 33mm/metric
  • Inner Diameter: 40mm
  • Outer Diameter: 90mm
  • Width: 33mm
  • Torque: 430 TKN
  • Resistance Torque: 38 TR
  • Quantity: One Clutch

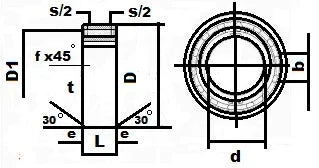

Dimension (mm)
d D L D2 b t s e f
40 90 33 78 12 4.1 2.5 1.8 1
