ASNU35 One Way 35x80x31 Bearing Support Required Backstop Clutch

$177.99
SKU: Kit12535_1
UPC: 00193019209462
Item: ASNU35
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 35mm x 80mm x 31mm/metric

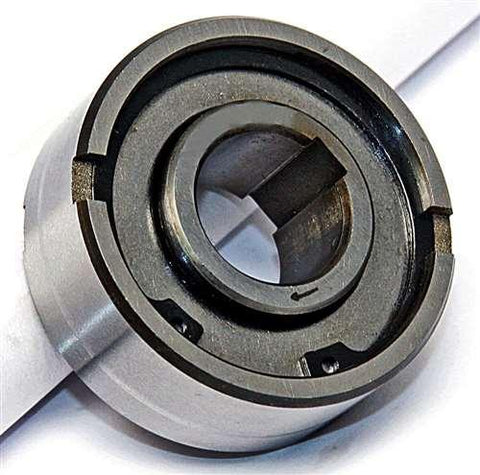

ASNU35 One Way Clutch
One Clutch

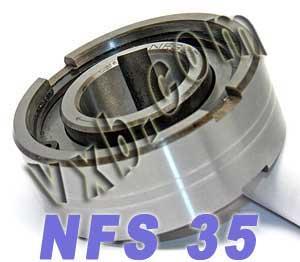

ASNU35 = NFS35


ASNU35 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. ASNU35 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Item: ASNU35
  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 35mm x 80mm x 31mm/metric
  • Inner Diameter: 35mm
  • Outer Diameter: 80mm
  • Width: 31mm
  • Torque: 306 TKN
  • Max Torque: 765 TKN
  • Inner Race Overrun: 1,200 RPM
  • Outer Race Overrun: 1,900 RPM
  • Quantity: One Clutch

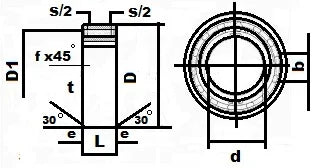

Dimension (mm)
d D L D2 b t s e f
35 80 31 70 12 3.5 2.4 1.8 1
