VXB

ASNU17 One Way 17x47x19 Bearing Support Required Backstop Clutch

$109.99
SKU: Kit12529_1
UPC: 00193019209400
Item: ASNU17
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 17mm x 47mm x 19mm/metric
ASNU17 One Way Clutch
One Clutch
ASNU17 = NFS17


ASNU17 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. ASNU17 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Item: ASNU17
  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 17mm x 47mm x 19mm/metric
  • Inner Diameter: 17mm
  • Outer Diameter: 47mm
  • Width: 19mm
  • Torque: 39 TKN
  • Max Torque: 97.5 TKN
  • Inner Race Overrun: 2,300 RPM
  • Outer Race Overrun: 3,400 RPM
  • Quantity: One Clutch

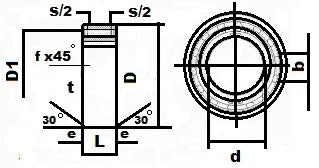

Dimension (mm)
d D L D2 b t s e f
17 47 19 40 5 2.3 2.4 1.2 0.8
