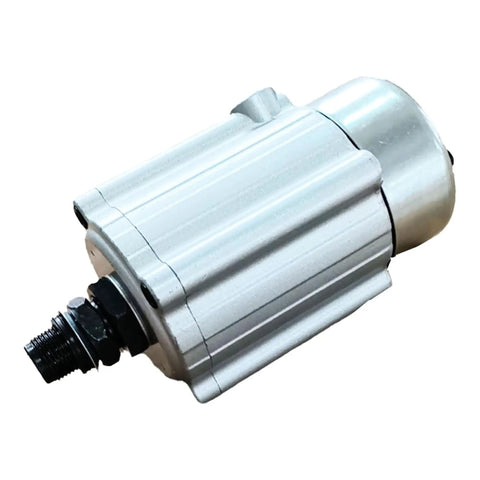

AP1002 Square Compressed Air Motor For Pneumatic Hydraulic Pumps With Beefy Power 108 To 120 PSI Air Pressure And 10000 PSI Max Hydraulic Pressure 11 SCFM Air Use 850 ml/min No Load Flow 170 ml/min Load Flow Rugged Compact Drive

High-performance air motor for hydraulic pumps, delivering up to 120 PSI power
✔️ Air pressure 108-120 PSI, max 10000 PSI hydraulic, 11 SCFM consumption, no-load flow 850 ml/min, compact 95x95x175 mm design

This compressed air motor powers hydraulic pumps, commonly used in industrial and construction sites for tasks like operating single-acting rams. It's ideal for applications needing reliable, foot-actuated control to handle heavy lifting and pressure adjustments efficiently.

✅ Air pressure range: 108-120 PSI or 0.7-1.0 MPa for consistent performance
✅ Max hydraulic pressure: 10000 PSI or 70 MPa, with flows of 850 ml/min no-load and 170 ml/min load
✅ Dimensions: 95 x 95 x 175 mm external, featuring 70 mm cylinder and 6 mm pump core for compact setup
✅ Connections: 1/4-inch NPT input and M20x1.5 output ports, using 11 SCFM air at 100 PSI

💡 How can compressed air motors improve efficiency in hydraulic setups?
This tech boosts system performance by reducing energy costs in demanding environments.
- Delivers precise pressure control for better machinery operation
- Lowers maintenance needs with rugged, air-powered designs
- Enhances safety in industrial tasks by avoiding electric risks
- Boosts flow rates to handle high-pressure jobs quickly
