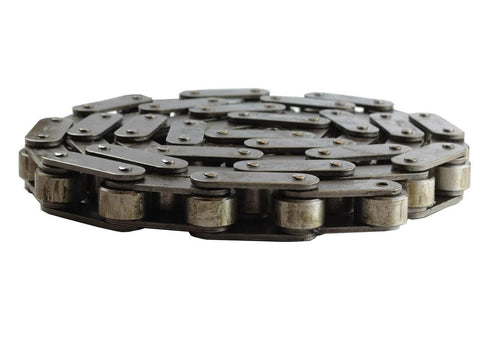

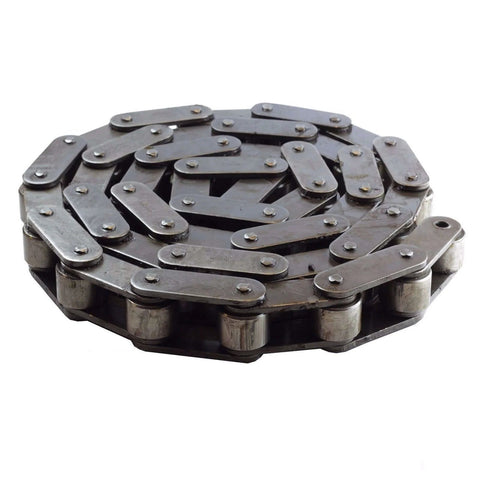

ANSI C2122 Conveyor Roller Chain Ten Feet With One Connecting Link Pitch Size Three Inches Double Pitch For Heavy Conveying Applications Industrial Grade Conveyor Chain With High Tensile Strength 33116 Lb And Durable Construction
✔️ Pitch 3.000 in, 10 ft length, 1.750 in roller dia, carbon steel

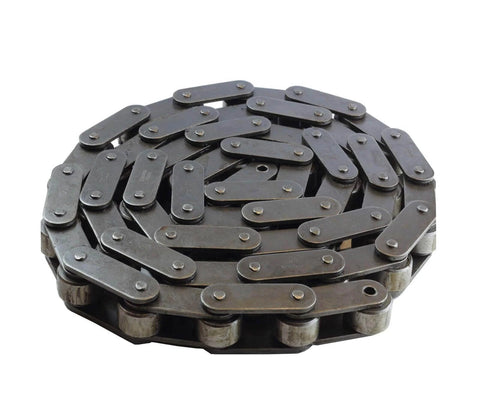

ANSI #C2122 Conveyor Roller Chain is a heavy-duty double-pitch chain built for long conveying runs in lumber yards, forestry operations, agriculture, mining, and cement plants. It ships as a 10-foot length with one connecting link, and features precision heat-treated pins, side plates, and rollers on carbon steel for enhanced wear life. Weight per foot is 5.132 lb (2.33 kg/ft); average tensile strength is 33,116 lb (147 kN). This chain is factory preload and hot-dip lubricated to resist wear and environmental exposure. Dimensions and specs are presented with metric equivalents to aid engineering planning.
| Dimension | Inches | Millimeters |
|---|---|---|
| Pitch size | 3.000 in | 76.20 mm |
| Roller diameter | 1.750 in | 44.45 mm |
| Width between inner plates | 0.993 in | 25.22 mm |
| Pin diameter | 0.437 in | 11.10 mm |
| Pin length L Max | 1.980 in | 50.29 mm |
| Pin length Lc Max | 2.138 in | 54.34 mm |
| Inner plate depth | 1.406 in | 35.77 mm |
| Plate thickness | 0.189 in | 4.80 mm |
| Length | 10 ft | 3.048 m |
| Weight per foot | 5.132 lb | 2.33 kg |
| Average tensile strength | 33,116 lb | 147 kN |

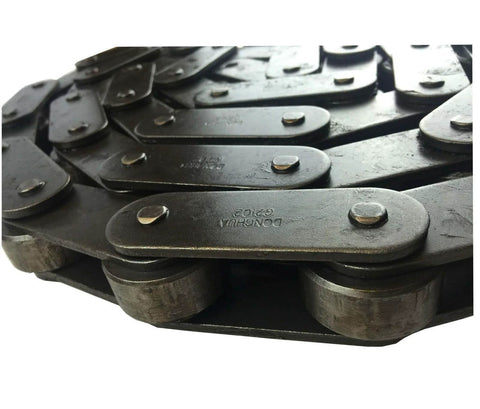

This chain is designed for heavy-duty conveyors used in lumber and forestry processing, grain handling, mining, and construction machinery. It uses a double-pitch layout to maximize conveying surface, while heat-treated pins, side plates, and rollers deliver long wear life under challenging conditions. All components are carbon steel with factory preload and lubrication to minimize elongation and extend service life. ISO-certified manufacturing ensures consistent quality across production lots.
✅ Pitch size: 3.000 in (76.20 mm)
✅ Length: 10 ft (3.048 m)
✅ Roller diameter: 1.750 in (44.45 mm)
✅ Width between inner plates: 0.993 in (25.22 mm)
✅ Pin diameter: 0.437 in (11.10 mm)
✅ Pin length L Max: 1.980 in (50.29 mm)
✅ Pin length Lc Max: 2.138 in (54.34 mm)
✅ Inner plate depth: 1.406 in (35.77 mm)
✅ Plate thickness: 0.189 in (4.80 mm)
✅ Average tensile strength: 33,116 lb (147 kN)
✅ Material: Carbon steel
💡 What is a conveyor chain used for in heavy-duty industrial setups?
- Handy for moving heavy loads along conveyors in mills, lumber yards, and processing plants - Useful in lumber, forestry, mining, cement, and grain operations where real-time timing and load transfer matter - Double-pitch design and heat-treated components extend wear life in tough environments
