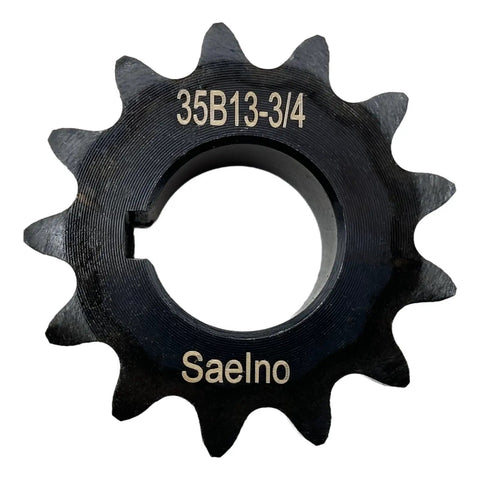

ANSI 35 Roller Chain Sprocket Type B 3/4 Bore 13 Teeth For ANSI 35 Chain Hardened 1045 Carbon Steel Drive Sprocket With 3/16 X 3/32 Keyway And Two Setscrews At 90 Degrees Type B High Frequency Quenched To HRC 38 To 42

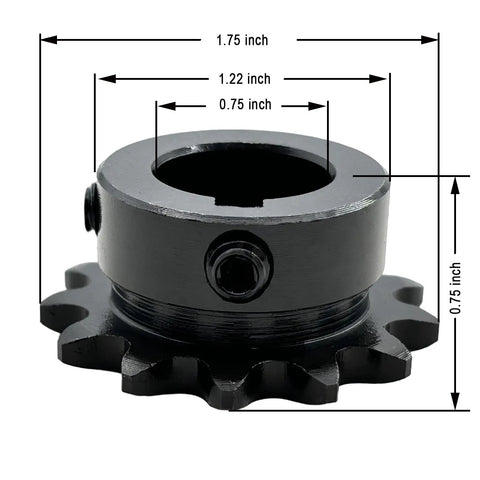

✔️ 3/4 in bore (19.05 mm), 13 teeth, 3/16x3/32 keyway, 2 setscrews, Type B
This roller chain sprocket is built for ANSI #35 chain, Type B, with a 3/4 in bore and 13 teeth. It’s made from 1045 carbon steel and hardened to HRC 38-42 using high-frequency quenching. The blackened surface adds corrosion resistance. It’s designed for reliable power transmission in agricultural machinery, woodworking equipment, and machine tools.
✅ ANSI #35 chain compatibility
✅ 3/4 in bore and 13 teeth

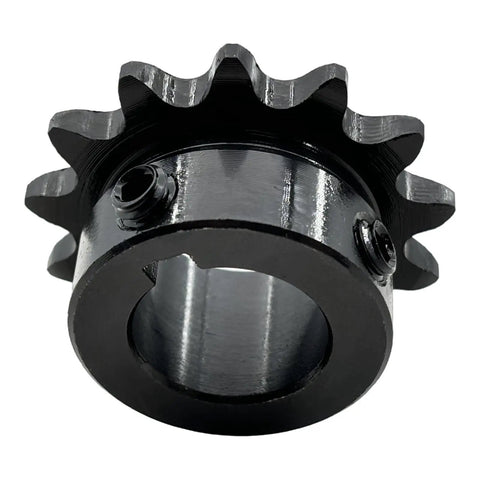

✅ 3/16x3/32 keyway, 2 setscrews at 90 degrees
✅ 1045 carbon steel, hardened to HRC 38-42
✅ Blackened surface for corrosion resistance

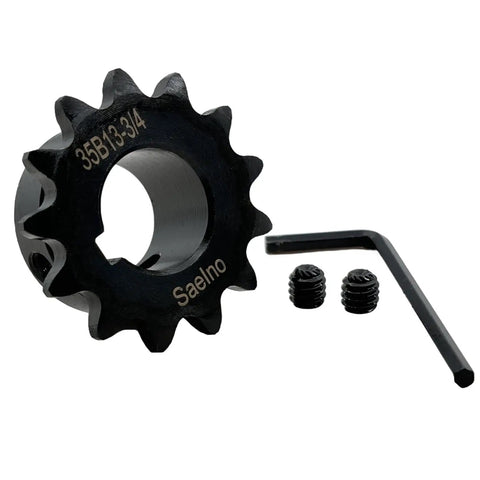

✅ Includes: 1 sprocket, 2 screws, 1 wrench
💡 What is an ANSI 35 roller chain sprocket used for in a drive system? This part connects the chain to a rotating shaft and helps transfer power smoothly. - Used in power transmission with ANSI #35 roller chains - Fits Type B sprockets with 3/4 in bore - Hardened 1045 steel resists wear in tough environments
✝️
