AK20GWUU NB 20mm Double Wide Compact Block Unit Motion Linear Bearings

$165.99
SKU: AK20GWUU_NB
UPC: 00193019106433
Item: AK20GWUU NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 20mm
Quantity: One Bearing
Dynamic load rating Cr: 882 N

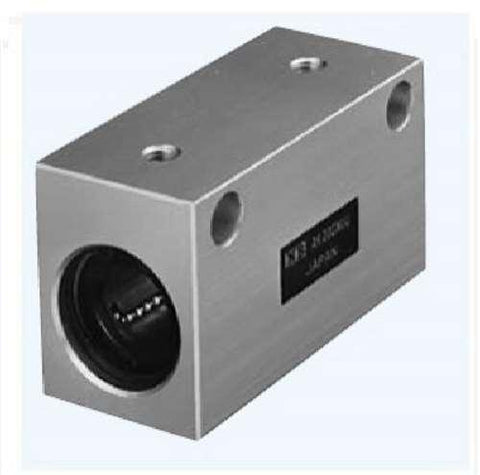

AK20GWUU NB Double Wide Compact Block:Slide Unit
Made in Japan:NB Linear Systems


AK20GWUU NB Double Wide Compact Block, The inner diameter is 20mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item: AK20GWUU NB Bearing
  • Type: Linear Ball Bushing
  • Shaft Diameter: 20mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 882 N
  • Static load rating Cor: 1370 N

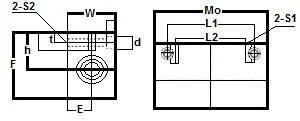

Inner Contact Diameter Outer Dimensions Mounting Dimensions
mm tolerance h E W L F L2 S1 L1 t S2 d H
20 0-10 31 21 42 52 54 36 M8 18 8 M8 11 8
