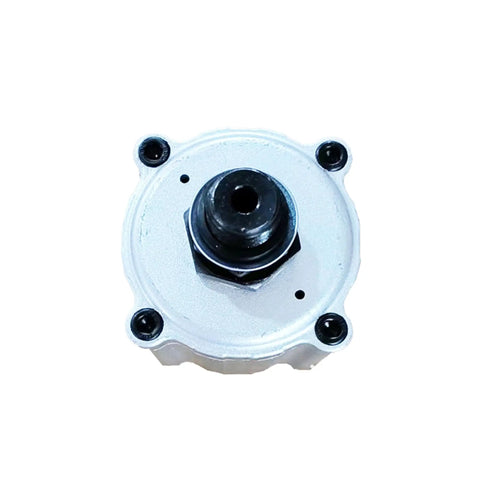

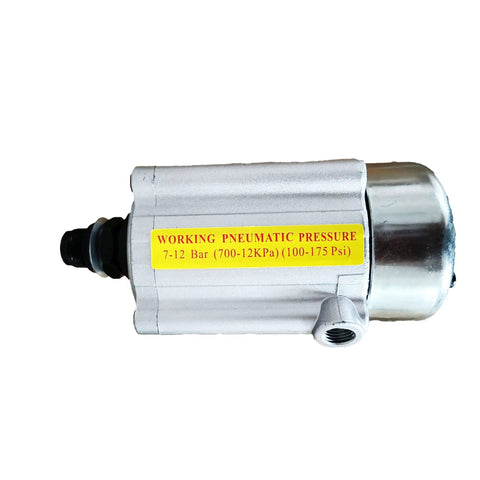

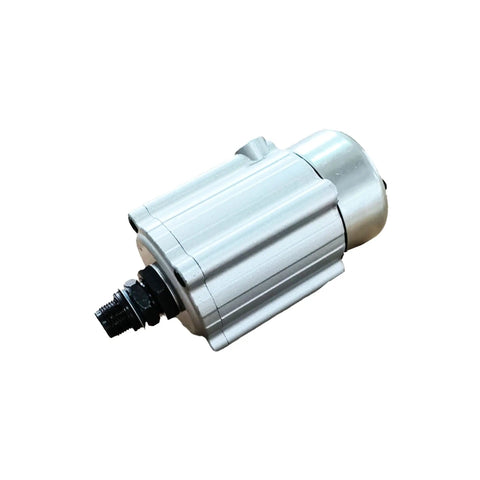

Air Over Hydraulic Pump For Pneumatic Systems Built To Last Beefy High Flow Performance 108 120 Psi Air Pressure And 10000 Psi Hydraulic Output 11 Scfm Air Consumption Under 100 Psi 850 Ml Min No Load 170 Ml Min Load Easy Swap Compressed Air Motor
✔️ Foot-actuated, 108-120 psi air, up to 70 MPa hydraulic pressure
This rugged air over hydraulic pump blends a foot-activated air drive with hydraulic output, making it ideal for single-acting ram tasks in construction, manufacturing, and equipment maintenance. It’s designed for tough environments where quick, controlled force is needed.
✅ Air pressure range: 108-120 psi (7.4-8.3 bar)
✅ Max hydraulic pressure: 70 MPa (10000 psi)
✅ Air consumption under 100 psi: 11 SCFM (0.31 m3/min)
✅ No-load output flow: 850 ml/min (52 cu in/min)
✅ Load output flow: 170 ml/min (10 cu in/min)
✅ Input port: 1/4" NPT; Output port: M20x1.5
✅ External dimensions: 75 x 75 x 185 mm (2.95 x 2.95 x 7.28 in)
✅ Cylinder bore: 70 mm
💡 What is an air over hydraulic pump used for in industrial lifting and pressing tasks? This handy tool powers rams with controlled hydraulic output for efficient work.
- Handy for precise lifting, pressing, and clamp applications
- Works with standard 1/4" NPT input and M20x1.5 output fittings
- Ideal for construction, maintenance, and workshop setups
- Reduces manual effort with foot or treadle actuation
