Air Cooled Hydraulic Oil Radiator With 250 LPM Flow, 24000 Kcal Per Hour Cooling, Beefed Up Heat Exchanger And Fan, Strong 2.0 MPa Pressure Rating, Industrial Grade Oil Cooler For Machinery And Equipment

Air Cooled Hydraulic Oil Radiator 250 LPM 24k kcal/h 2 MPa
✔️ Single unit, industrial grade oil cooler for machinery and equipment

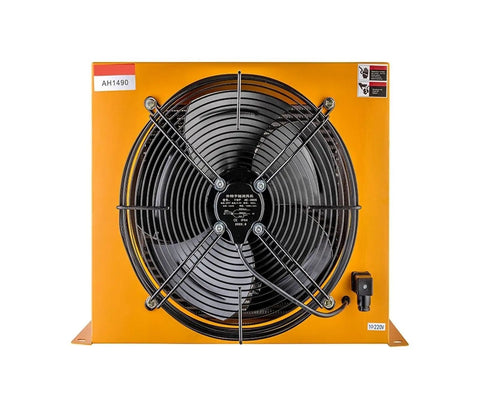

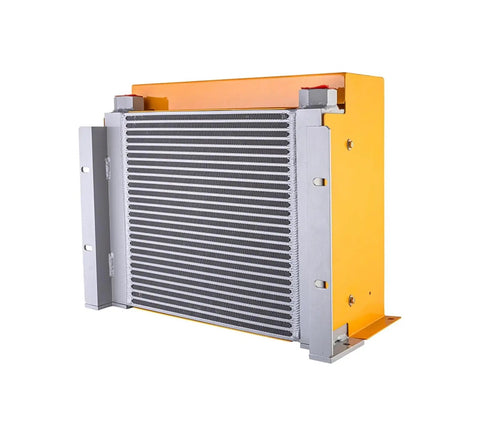

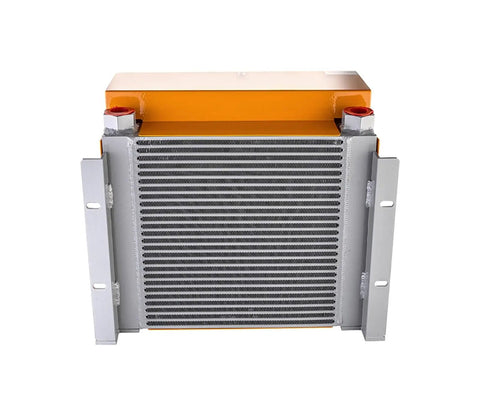

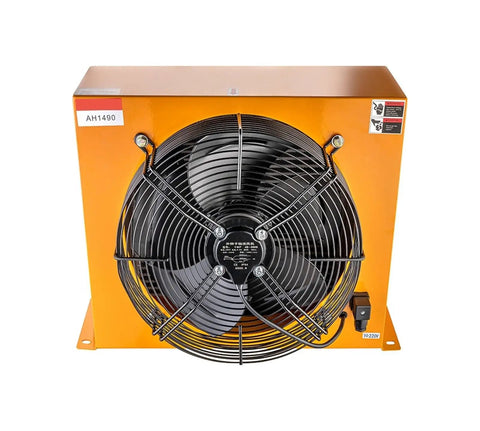

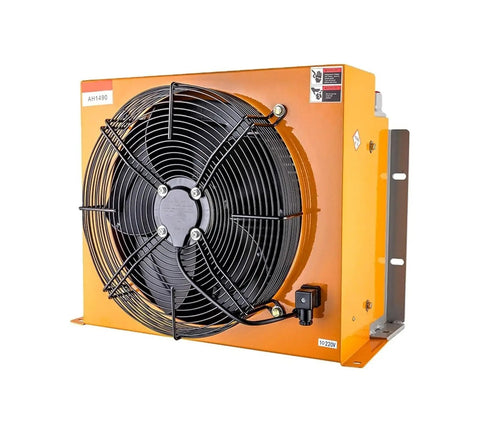

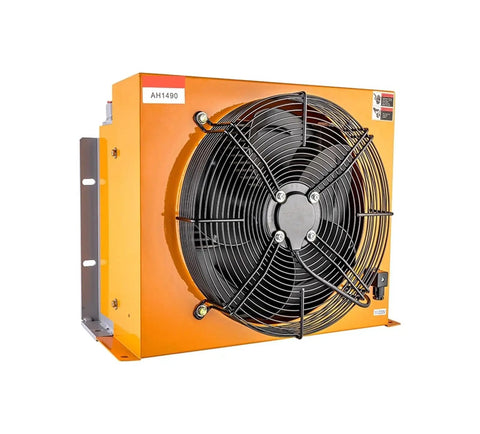

The AH1490 Air Cooled Oil Radiator uses a plate heat exchanger design to efficiently dissipate heat from hydraulic oil by exhausting ambient air. It's compact and rugged, built for industrial machines on factory floors and construction sites where space and reliability matter.

✅ Heat Exchanger Type: Plate Heat Exchanger
✅ Liquid Flow Rate: 250 L/min
✅ Maximum Pressure Rating: 2.0 MPa
✅ Dimension (LxWxH): 58 cm x 45 cm x 35 cm
✅ Working Temperature Range: -40 to 180 °C
✅ Cooling Capacity: 24000 Kcal/h
✅ Exhaust Volume: 3150 m³/h
✅ Fan Power: 4P-140W/2P-230W
✅ Exterior Cooling Area: 10.5 m²

💡 What is an air cooled hydraulic oil radiator used for in industrial systems?

It helps keep hydraulic oil within a safe temperature range, protecting components and boosting equipment life.

- Handy for maintaining stable oil temps under heavy loads - Handy in environments with limited or variable ambient cooling - Helps extend service life of hydraulic pumps and valves
