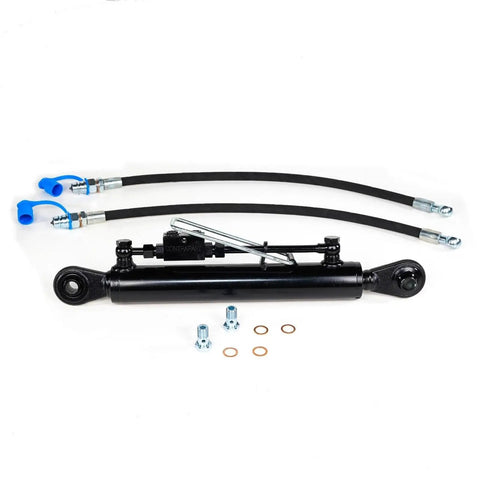

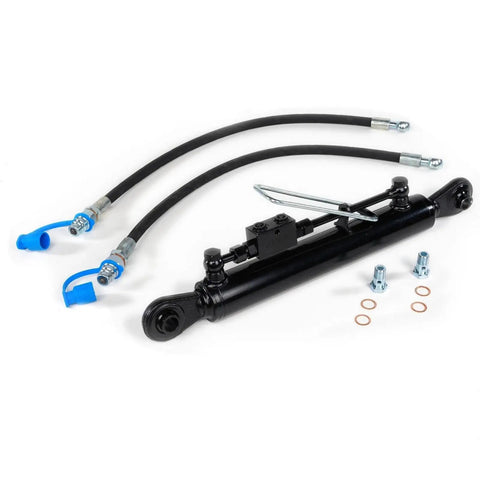

Adjustable Hydraulic Top Link Cat 1 From Cab Control 23 And 5 Eighths To 37 Inches With Locking Block And Two Hydraulic Hoses Rotatable Piston Rod Check Valve ISO 5675 Series A Quick Couplers

Adjustable Cat 1 Hydraulic Top Link with Cab Control 1x unit
✔️ Cab-control hydraulic top link, 0.75 in pin, 20-45 HP range

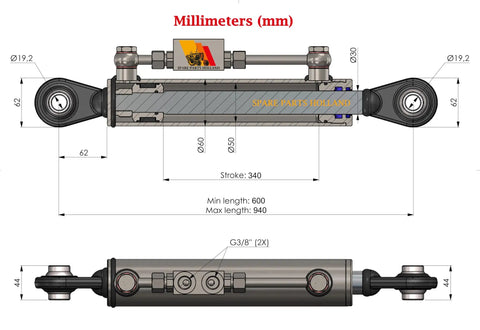

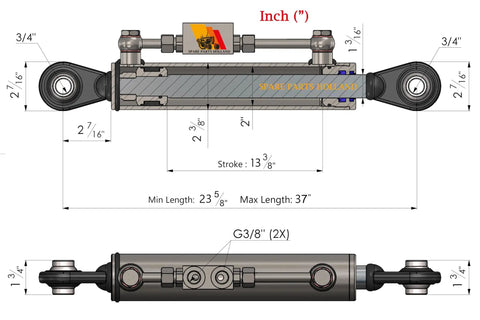

The adjustable hydraulic top link replaces the manual top link on Category 1 tractors, enabling in-cab adjustment of the stroke from 23 5/8 in (600 mm) to 37 in (940 mm). It’s ideal for mowers, scrapers, box graders, and bale forks.

✅ Category 1 compatibility: 0.75 in pin
✅ Pushing force: 7900 lbs @ 2,610 psi
✅ Pulling force: 5070 lbs @ 2,610 psi

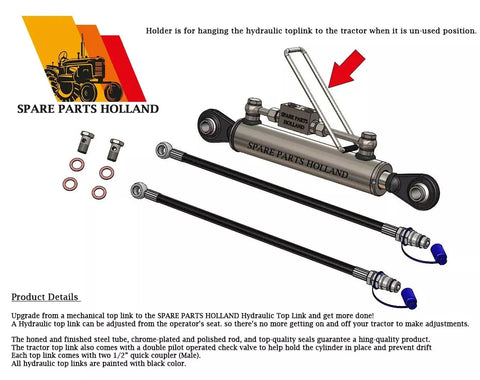

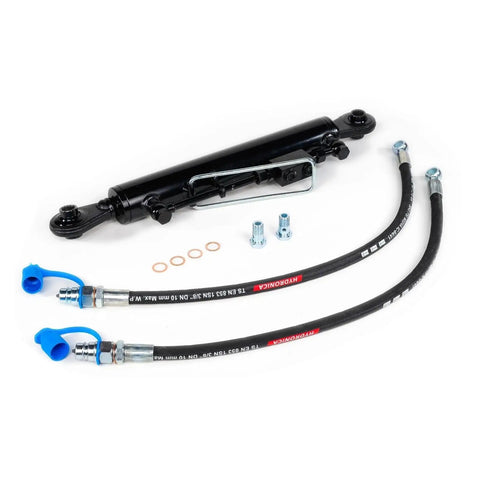

✅ Includes 2 hoses (27.5 in) and 2 x 1/2 in BSP quick couplers (ISO 5675 - Series A)

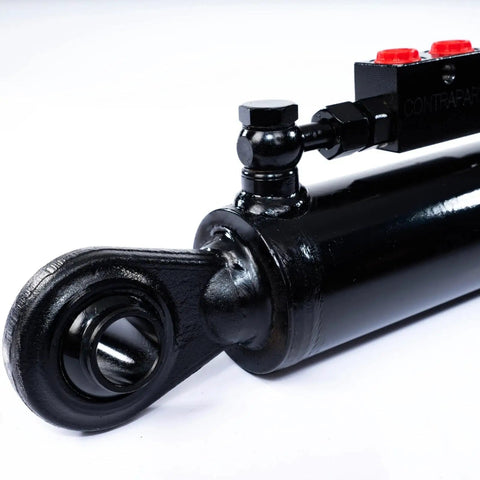

✅ Rotatable piston rod with locking block and check valve

💡 What is a hydraulic top link used for on Category 1 tractors and how does cab control improve efficiency? A hydraulic top link lets you adjust the implement angle from the cab, reducing manual effort and improving precision.
- In-cab angle adjustment
- Positive hold with integrated check valve
- ISO 5675 Series A quick couplers compatibility

✝️
