AC washdown-duty general-purpose motor 1/2 HP single-phase 1800 RPM 115/230V TEFC painted enclosure 56C frame 60 Hz NEMA efficiency sealed ball bearing PF0.65 ceramic single unit

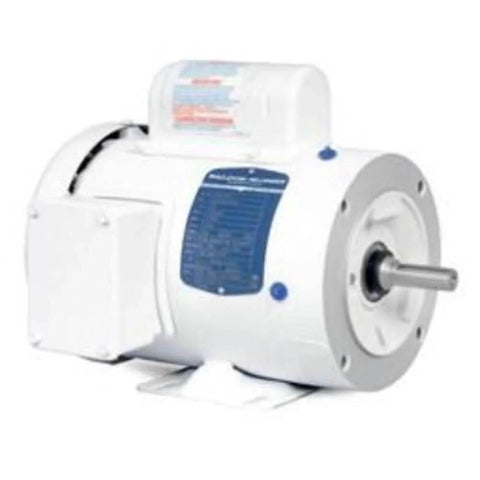

Single AC washdown-duty motor, 1/2 HP TEFC
✔️ 1800 RPM (1725), 115/230V, 56C frame, sealed ball bearing

This single motor is a painted, general-purpose washdown-duty unit commonly used in food processing, bottling, and marine wash stations where moisture resistance is needed.

✅ Horsepower: 0.5 HP; service factor 1.25
✅ Voltage: 115/230 V single-phase; amps 7.4/3.7
✅ Speed: 1800 RPM nominal, 1725 nameplate RPM
✅ Frame: 56C; enclosure: TEFC painted housing
✅ Bearings: sealed ball bearing, DE 6205 / ODE 6203
✅ Insulation: Class F; NEMA nominal efficiency ~68%
✅ Power factor 0.65; rated ambient 40C; 60 Hz operation
✅ Compatible with ceramic shaft seals; not direct linear slide unit drive

💡 What is a washdown duty TEFC motor used for in wet industrial environments? A washdown-duty TEFC motor keeps windings and bearings protected during routine cleaning and wet conditions. - Built to resist water and cleaning chemicals with TEFC enclosure and sealed ball bearing protection. - Ideal for small pumps, mixers, conveyors, and food processing lines where a single-phase 1/2 HP motor is handy. - Works well with ceramic shaft seals and can be integrated into drive systems, though not typically used as a direct linear slide unit actuator.
