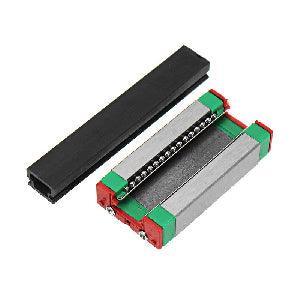

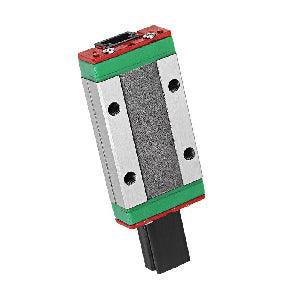

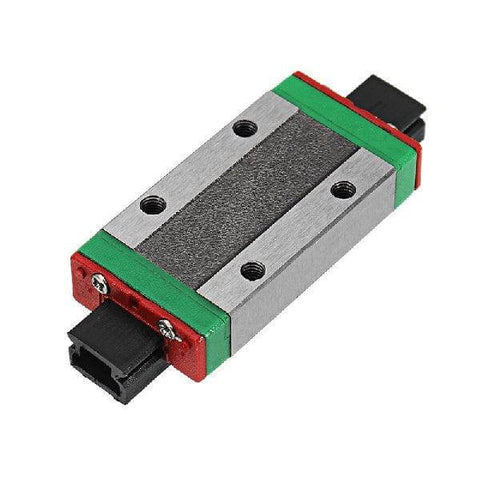

9mm Miniature Square Slide Unit Block Linear Motion
Title
$57.99
SKU: 9MM-SQUARE-SLIDE-UNIT
UPC: 00193019173848
UPC: 00193019173848
Item Name: 9mm Block Linear Motion
Type: Linear Motion Systems
Quantity: One
Rail is not included
Type: Linear Motion Systems
Quantity: One
Rail is not included
9mm Miniature Square Slide Unit Block Linear Motion To be used with 9mm Rail |
9mm Square Slide Unit Block Linear Motion, Diameter Shaft is 20mm
|

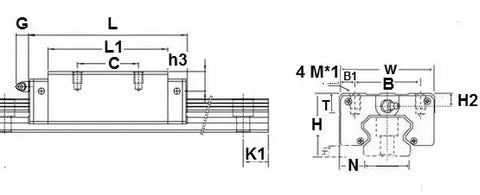

Block Dimensions (mm) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 | H |
44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 30 |
