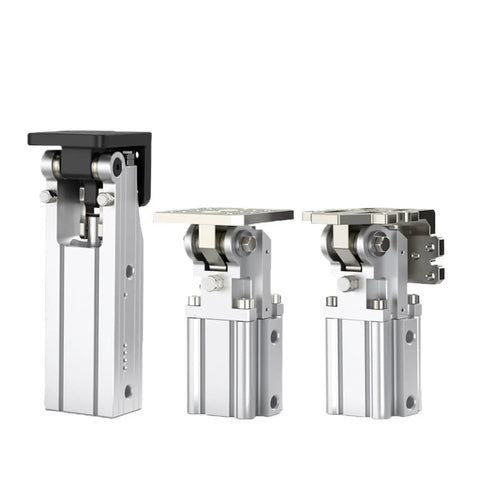

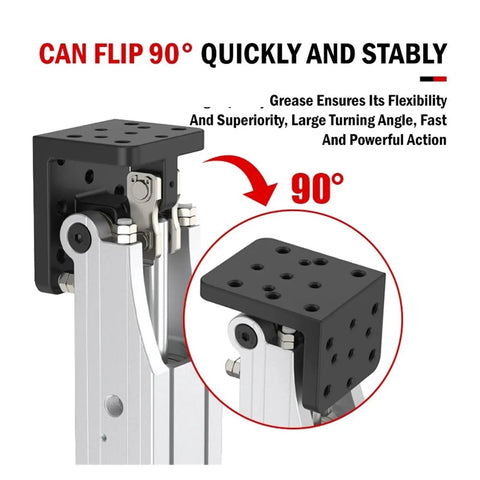

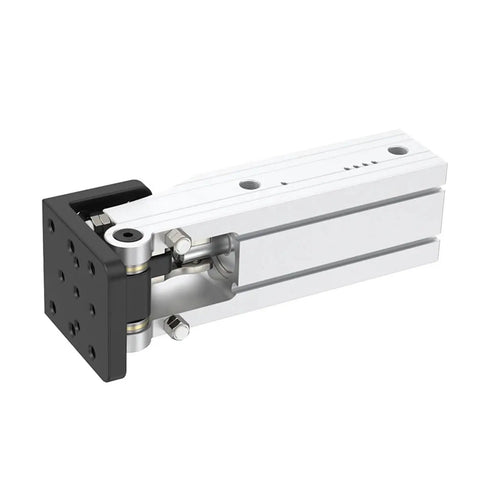

90 Degree Flip Side Pose Cylinder FCZ32 DHRC32 LCZ32 Pneumatic Manipulator Accessory Rack Hinge Stable Positioning Smooth Transmission For Assembling And Layout Needs
✔️ Rack hinge linkage designed for steady torque delivery
This side mount flip cylinder acts as a precision rotation joint for industrial automation setups. It attaches directly to pneumatic manipulator arms to assist crews in repositioning heavy tools without manual lifting. You will find it installed on assembly lines, packaging machinery, and custom jig stations where operators need quick directional changes. The compact footprint keeps workspaces tidy while maintaining reliable alignment through tight production shifts.
✅ Rack and pinion gear drive for consistent rotational feedback✅ Standardized mounting base compatible with common gripper rails

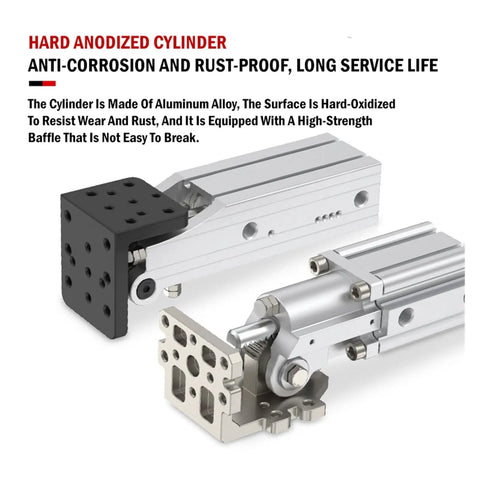

✅ Heavy duty steel housing resists wear from constant motion
✅ Integrated stopper pins lock components firmly at target angles
✅ Lightweight aluminum frame reduces overall system inertia
💡 How does a rack and pinion flip joint maintain positional accuracy under load?
A handy rotation accessory helps crews swap parts fast without rebuilding the whole setup. Here is why this unit works for demanding automation lines:
- Delivers repeatable angular placement when routing wire harnesses through tight frames
- Boosts throughput by keeping robotic end effectors aligned right before torque checking
- Saves downtime since the enclosed glide path blocks metal shavings and coolant spray
- Takes the place of manual locking bars with a straightforward pneumatically driven switch
