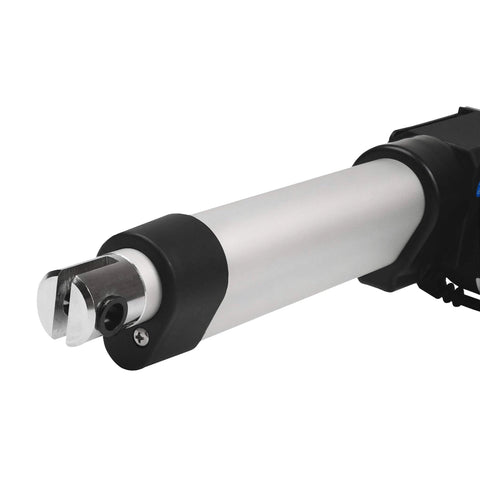

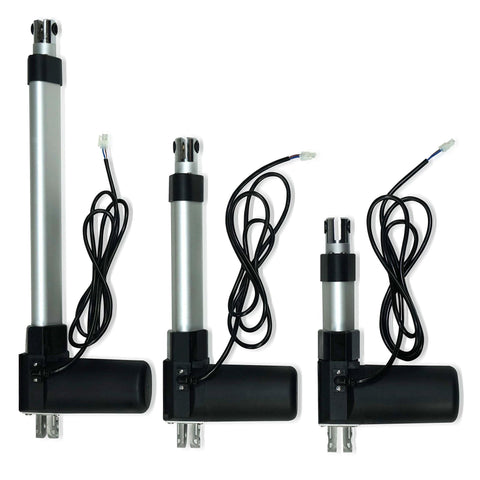

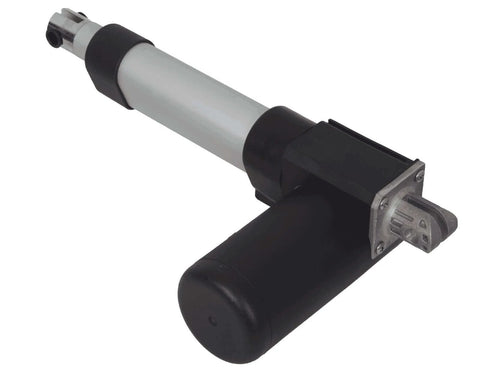

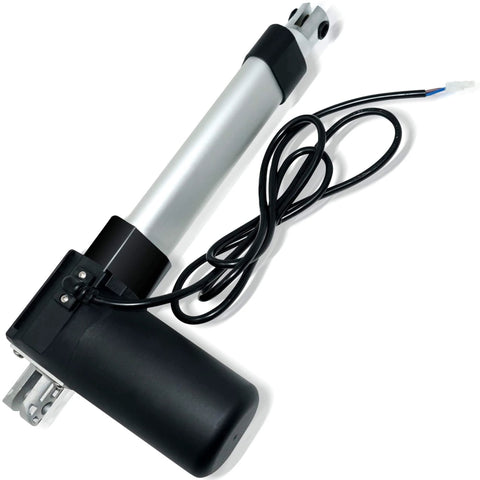

9 Inch Stroke Electric Linear Actuator, 400 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

9-Inch Stroke Electric Linear Actuator, 400 lb Force, IP66 Water-Resistant High-Load Actuator for Automation, Manufacturing, and Automotive

✔️ Single actuator, 9 in stroke, 12 VDC operation, IP66 rated, 400 lb max force

This handy, high-load linear actuator delivers dependable, smooth motion for automation, manufacturing lines, automotive equipment, and home automation projects. With IP66 protection, it stands up to dust, rain, and outdoor use in factories, shops, and outdoor installations.

✅ Stroke length: 9 inches
✅ Maximum load: 400 pounds
✅ Voltage: 12 V DC
✅ Protection: IP66 rated for dust and water resistance
✅ Connector: 2-Pin Molex Mini-Fit Jr for simple installation
✅ Application: ideal for automation, manufacturing, automotive, and outdoor machinery

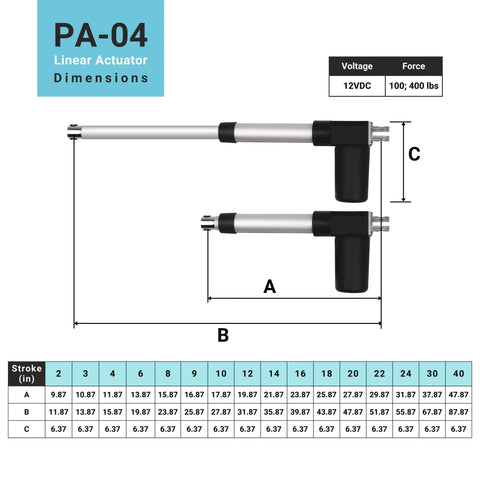

✅ Model lineage: PA-04 actuator from Progressive Automations (ISO 9001:2015)

This handy actuator excels at automating doors, drawers, furniture adjustments, and rugged equipment, delivering strong, reliable motion in tight spaces.

💡 What is a 9-inch stroke electric linear actuator used for in industrial automation and consumer machinery?

In general, a 9-inch stroke actuator provides controlled linear travel to position components precisely and reliably.

• In automation and manufacturing, it can lift, push, open, or adjust parts along a straight line
• IP66 protection helps it survive dust, water, and outdoor environments
• 12 V DC operation makes it easy to power from common control systems or batteries
• 9-inch stroke offers a compact but capable travel distance for constrained spaces
