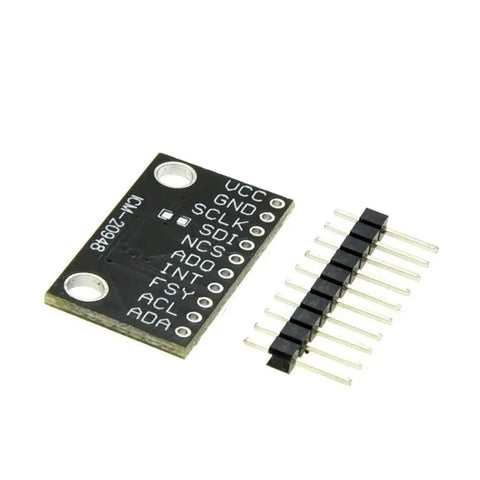

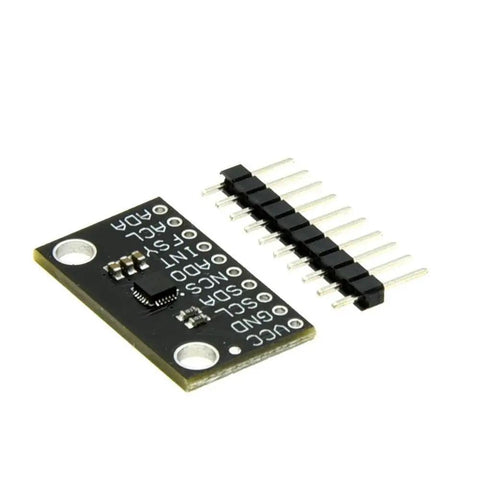

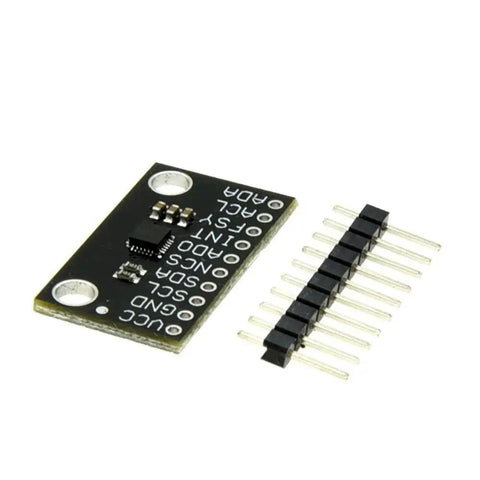

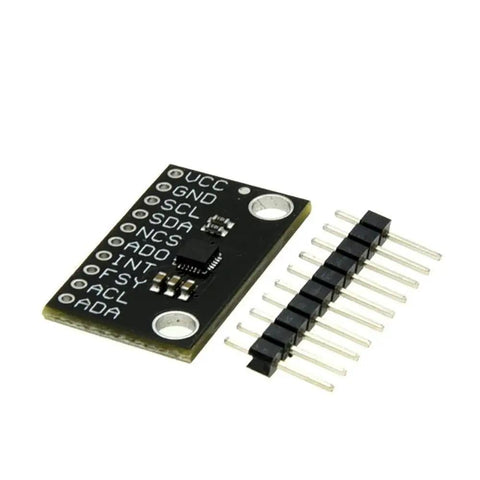

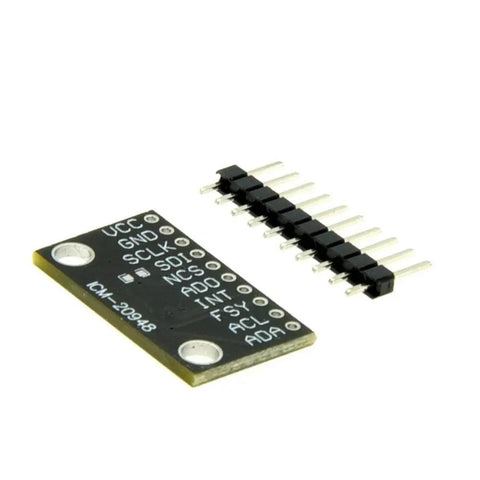

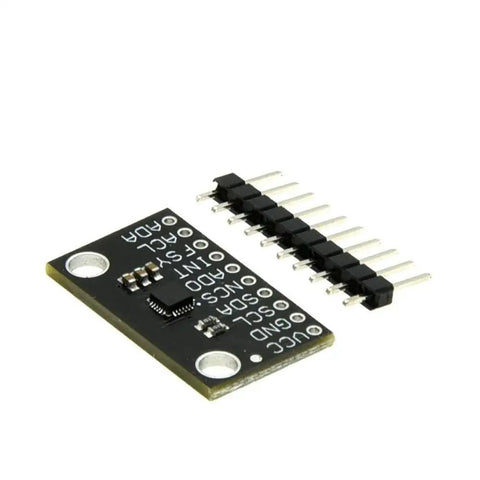

9 Axis MEMS Motion Tracking Sensor Module Low Power IMU Breakout Board For ICM20948 Projects With Easy Integration Time Sync Ready Compact Design Ideal For Microcontrollers And Embedded Systems
✔️ 9-axis MEMS motion tracking with I2C/SPI and time sync, single module
The module centers on the ICM-20948 sensor, delivering 9-axis motion data in a compact breakout designed for microcontrollers and embedded systems. It supports low power operation and time synchronization between sensors.
✅ 9-axis MEMS motion tracking device (gyro, accelerometer, magnetometer)
✅ Low power operation to 2.5 mW
✅ Onboard Digital Motion Processor (DMP) for Android support
✅ Auxiliary 2C interface for external sensors
✅ On-Chip 16-bit ADCs and programmable filters
✅ 7 MHz SPI or 400 kHz Fast Mode I2C
✅ Digital-output temperature sensor
✅ VDD 1.71V to 3.6V
✅ MEMS hermetically sealed and bonded at wafer level
✅ Pins: VCC, GND, SCL, SDA, NCS, ADO, INT, FSY, ACL, ADA
💡 What is a 9-axis MEMS motion tracking sensor module used for in microcontroller projects?
This handy module helps developers capture motion data in a compact, low-power form. - 9-axis sensing (gyro, accel, mag) in a single module for embedded systems - Time sync and FSYNC support for coordinating multiple sensors - I2C/SPI interfaces with an auxiliary port for external sensors ✝️
