8mm Bearing/Bushing LMF8UU Linear Motion

No reviews
$19.49
SKU: Kit14790
Item: LMF8UU Bearing
Type: Linear Ball Bearing
Size: 8mm x 15mm x 17mm
Inner Diameter: 8mm
Outer Diameter: 15mm

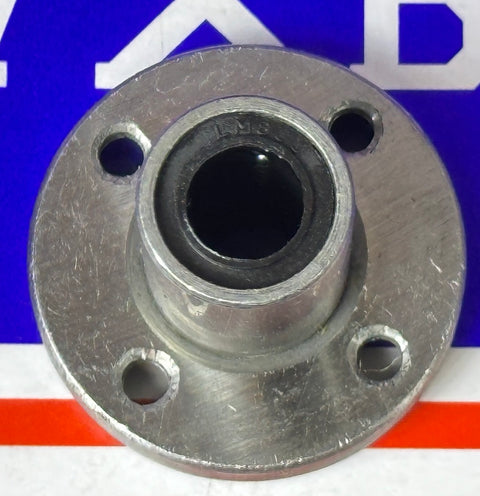

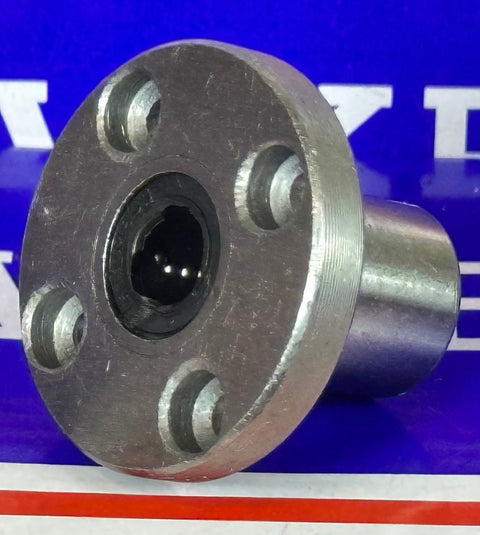

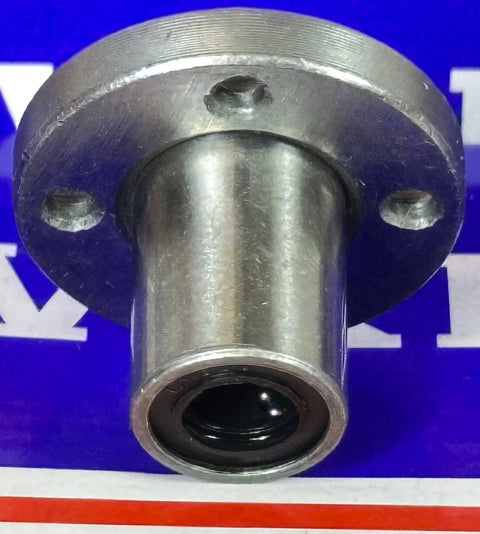

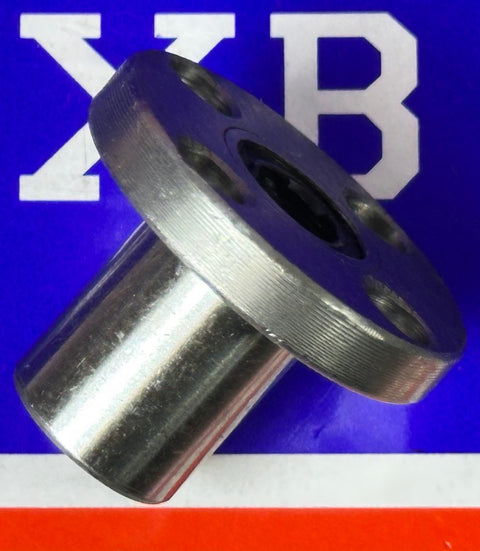

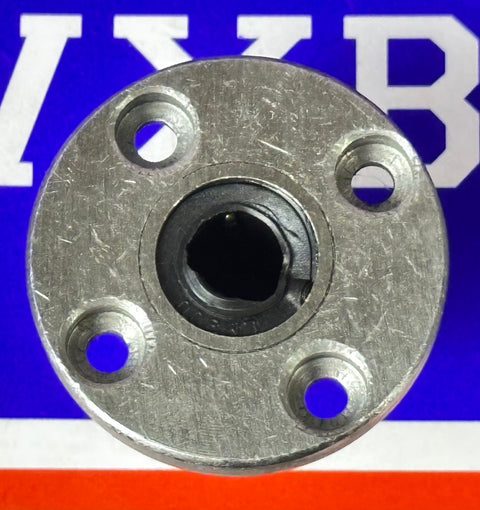

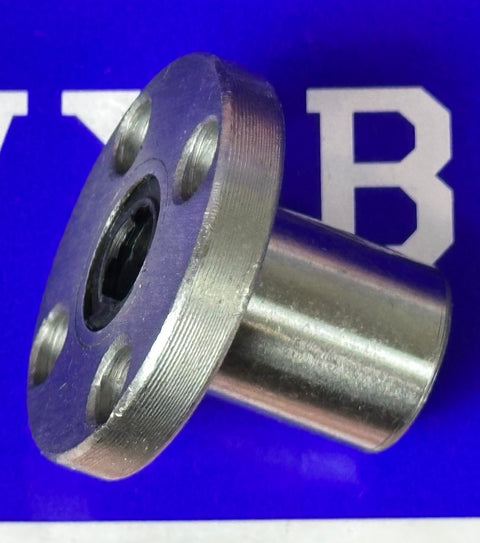

LMF8UU Linear Ball Bearing
Works with 8mm Shafts


LMF8UU Linear Ball Bearing works with a 8mm Shafts, Size is 8mm x 15mm x 17mm, the inner Diameter is 8mm, the outer Diameter is 15mm and the Length is 17mm, Bearing has Built-in Rubber Seals.
  • Item: LMF8UU Bearing
  • Type: Linear Ball Bearing
  • Size: 8mm x 15mm x 17mm
  • Inner Diameter: 8mm
  • Outer Diameter: 15mm
  • Length: 17mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 176 N
  • Static load rating Cor: 216 N

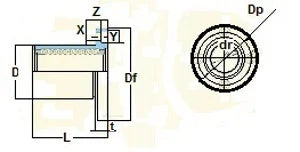

Dimensions(mm)
dr D L t Dp X Y Z
mm tolerance mm tolerance mm tolerance
8 0-9 15 0-13 32 17 5 24 3.5 6 3.1
