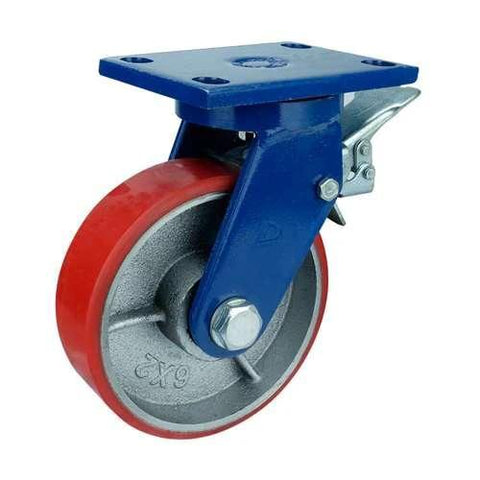

8 Inch Heavy Duty Swivel Caster Wheel with upper brake featuring cast iron core and polyurethane tread wide 75mm wheel precision double ball bearings top plate mount and 3307 lb load capacity for industrial machinery and heavy equipment

8 Inch Heavy Duty Caster Wheel 3307 lb with Brake
✔️ Swivel Cast Iron Core Polyurethane Caster Top Plate Mount

This 8 inch swivel caster with upper brake is built to move and lock very heavy machines and industrial platforms safely. The cast iron core delivers serious strength, while the polyurethane tread rolls smoother and helps protect concrete floors during daily operation.

✅ Pack size: single caster wheel
✅ Caster type: swivel with upper brake
✅ Load capacity: 3307 lb per caster
✅ Wheel diameter: 200 mm 7.874 inch
✅ Wheel width: 75 mm 2.953 inch
✅ Wheel material: polyurethane tread
✅ Core material: cast iron
✅ Bearing type: precision double ball bearing
✅ Top plate mount for rigid, secure installation
✅ Low rolling resistance under heavy loads
✅ Operating temperature range: -40 F to 180 F

Dimensions
Wheel Diameter 200 mm 7.874 inch
Wheel Width 75 mm 2.953 inch
Overall Height 275 mm 10.827 inch
Top Plate Size 200 mm x 153 mm 7.87 inch x 6.02 inch
Plate Thickness 14 mm plate 10 mm housing
Hole Spacing 160 mm x 90 mm 6.30 inch x 3.54 inch

💡 Why are swivel caster wheels with brakes and cast iron cores used for heavy industrial equipment?
They are designed to combine high load capacity with control and safety.

• Cast iron core supports extreme weight without flexing

• Polyurethane tread reduces noise and floor wear

• Swivel action allows controlled positioning of heavy machines

• Upper brake locks movement for safer operation

This caster is a strong choice when you need serious load support, smooth swivel movement, and dependable braking for heavy industrial machinery and equipment bases.
