8 Inch Heavy Duty Swivel Caster Wheel with Center Brake Rated 1190 Lbs, Cast Iron Core with Polyurethane Tread, Roller Bearing, Top Plate Mount, 200mm Diameter for Industrial and DIY Mobile Equipment

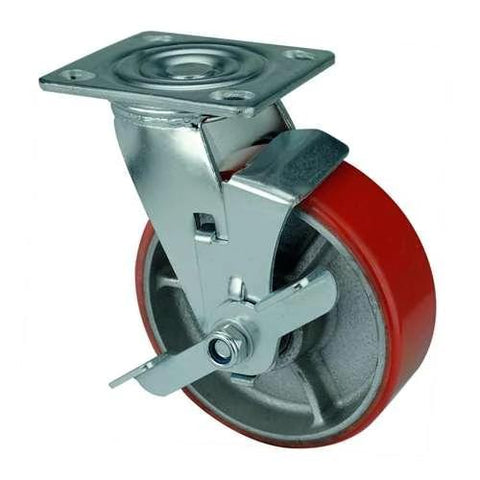

8 Inch Heavy Duty Swivel Caster Wheel with Center Brake
✔️ 200 mm Cast Iron and PU Caster with Center Brake, Top Plate Mount

This 8 inch heavy duty swivel caster wheel with center brake is built to move heavy DIY projects, carts, and industrial equipment with confidence. Designed for push or pull movement, it combines strong load handling with smooth rolling and added braking control for safer positioning on shop floors and work sites.

✅ Pack size: 1 swivel caster wheel with center brake
✅ Wheel diameter: 200 mm 7.874 inch
✅ Wheel width: 50 mm 1.969 inch
✅ Overall caster height: 250 mm 9.843 inch
✅ Mount type: swivel with center brake, top plate mount
✅ Top plate size: 115 mm x 100 mm x 6 mm 4.53 x 3.94 x 0.24 inch
✅ Bolt hole spacing: 72 mm x 85 mm 2.83 x 3.35 inch
✅ Tread material: polyurethane
✅ Core material: cast iron
✅ Bearing type: roller bearing
✅ Maximum load capacity: 1190 lb per wheel
✅ Operating temperature range: -40 to 180 F
✅ Low rolling resistance for easier movement under heavy loads

Dimensions
Wheel Diameter 200 mm 7.874 inch
Wheel Width 50 mm 1.969 inch
Overall Height 250 mm 9.843 inch
Top Plate Size 115 x 100 x 6 mm 4.53 x 3.94 x 0.24 inch
Bolt Hole Spacing 72 x 85 mm 2.83 x 3.35 inch
Load Capacity 1190 lb

💡 Why are swivel caster wheels with a center brake used for heavy-duty carts and projects?
Swivel casters with center brakes are designed to balance easy movement with reliable stopping power.

• Center brake helps lock motion to keep equipment steady during work or loading

• Swivel design improves steering and positioning in tight spaces

• Polyurethane tread protects floors while handling high dynamic loads

• Roller bearings support smooth rolling with less push effort

This caster wheel is a handy choice when you need strong load support, controlled stopping, and smooth rolling for demanding industrial or DIY applications.
