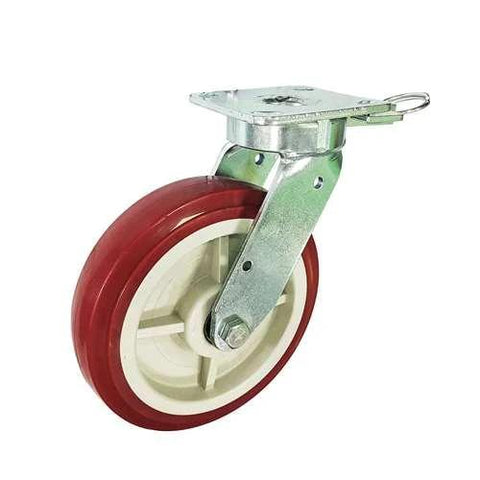

8 Inch Heavy Duty Swivel Caster Wheel with Upper Brake Rated 1543 Lbs, Aluminum Core with Polyurethane Tread, Double Ball Bearing, Top Plate Mount, 200mm Diameter for Industrial and DIY Mobile Equipment

8 Inch Heavy Duty Swivel Caster Wheel with Upper Brake for Industrial Use
✔️ 200 mm Aluminum and PU Swivel Caster with Upper Brake, Top Plate Mount

This 8 inch heavy duty swivel caster wheel with upper brake is built to move heavy DIY builds, carts, and industrial equipment with confidence. Designed for push or pull movement, it combines strong load capacity with smooth rolling and added braking control to keep equipment steady when needed.

✅ Pack size: 1 swivel caster wheel with upper brake
✅ Wheel diameter: 200 mm 7.874 inch
✅ Wheel width: 50 mm 1.969 inch
✅ Overall caster height: 250 mm 9.843 inch
✅ Mount type: swivel with upper brake, top plate mount
✅ Top plate size: 115 mm x 100 mm x 6 mm 4.53 x 3.94 x 0.24 inch
✅ Bolt hole spacing: 72 mm x 85 mm 2.83 x 3.35 inch
✅ Tread material: polyurethane
✅ Core material: aluminum
✅ Bearing type: double ball bearing
✅ Maximum load capacity: 1543 lb per wheel
✅ Operating temperature range: -40 F to 180 F
✅ Designed for low rolling resistance under heavy loads

Dimensions
Wheel Diameter 200 mm 7.874 inch
Wheel Width 50 mm 1.969 inch
Overall Height 250 mm 9.843 inch
Top Plate Size 115 x 100 x 6 mm 4.53 x 3.94 x 0.24 inch
Bolt Hole Spacing 72 x 85 mm 2.83 x 3.35 inch
Load Capacity 1543 lb

💡 Why are swivel caster wheels with upper brakes used for heavy equipment and DIY projects?
Swivel casters with upper brakes are chosen to balance easy movement with reliable stopping power.

• Upper brake helps lock motion to keep equipment secure during loading or work

• Swivel design improves steering and positioning in tight spaces

• Aluminum cores provide high strength without unnecessary weight

• Double ball bearings support smooth rolling under heavy dynamic loads

This caster wheel is a handy option when you want strong load support, controlled stopping, and smooth rolling for demanding industrial or DIY movement tasks.
