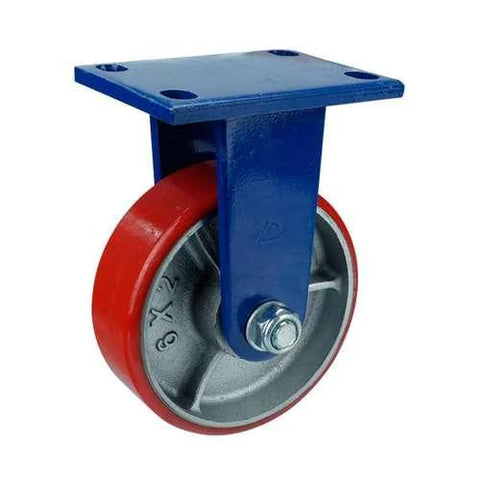

8 Inch Heavy Duty Fixed Caster Wheel with cast iron core and polyurethane tread featuring wide 75mm wheel precision double ball bearings top plate mount and 3307 lb load capacity for industrial machinery and heavy equipment

8 Inch Heavy Duty Fixed Caster Wheel 3307 lb Load
✔️ Cast Iron Core with Polyurethane Tread Top Plate Mount

This 8 inch fixed caster wheel is built for moving very heavy machinery and industrial equipment in straight line paths. The cast iron core delivers serious strength, while the polyurethane tread helps reduce vibration and protect concrete floors during daily operation in tough environments.

✅ Pack size: single fixed caster wheel
✅ Caster type: fixed non swivel
✅ Load capacity: 3307 lb per caster
✅ Wheel material: polyurethane tread
✅ Core material: cast iron
✅ Bearing type: precision double ball bearing
✅ Low rolling resistance under heavy loads
✅ Top plate mount for rigid, secure installation
✅ Suitable for industrial and warehouse use
✅ Operating temperature range: -40 F to 180 F

Dimensions
Wheel Diameter 200 mm 7.874 inch
Wheel Width 75 mm 2.953 inch
Overall Height 275 mm 10.827 inch
Top Plate Size 200 mm x 153 mm 7.87 inch x 6.02 inch
Plate Thickness 14 mm plate 10 mm housing
Hole Spacing 160 mm x 90 mm 6.30 inch x 3.54 inch

💡 Why are fixed caster wheels with cast iron cores and polyurethane treads used for heavy industrial loads?
They are designed to handle extreme weight while keeping movement predictable and efficient.

• Fixed design keeps heavy equipment tracking straight

• Cast iron core supports very high loads without deformation

• Polyurethane tread reduces noise and floor wear

• Precision bearings lower push and pull effort under stress

This caster is a solid choice when you need straight line stability, high load capacity, and dependable rolling for heavy machinery, production equipment, and industrial platforms.
