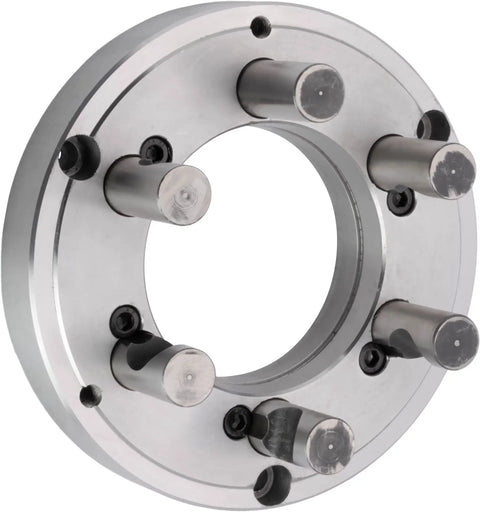

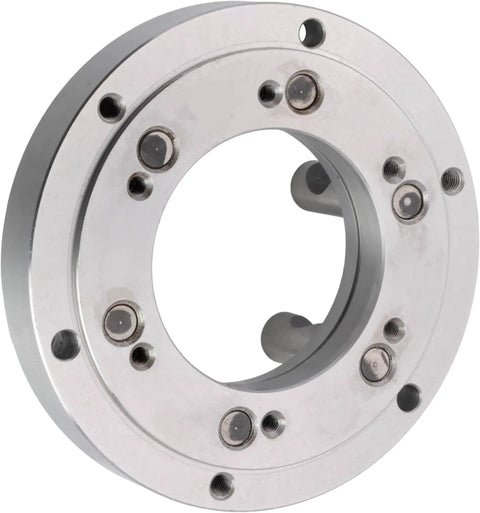

8 Inch D1-6 Camlock Backing Plate for Self-Centering Chucks
✔️ Single plate, fits D1-6 camlock spindles, plain back chucks

The 8 inch camlock backing plate is a mounting accessory used to attach plain back lathe chucks to lathes with camlock spindles. This back plate ensures proper alignment and registration, enabling reliable chuck mounting on camlock spindles in metalworking shops and machine shops.

✅ Plate Diameter: 7 7/8" (200 mm) on 7.09" bolt circle
✅ Plate Thickness: 1" (25.4 mm)
✅ Boss Diameter: 6.5" (165.1 mm)
✅ Boss Projection: 0.2" (5.08 mm)
✅ Mounting Hole Type: 3 counterbored/unthreaded and 3 threaded; Hole Size: M10 x 1.5 mm
✅ Mounting Hole Circle: 7.09" diameter (180 mm)

💡 What is a camlock lathe back plate used for on D1-6 spindle setups with plain back chucks? This handy accessory lets you mount plain-back lathe chucks on camlock spindles, ensuring proper alignment and quick, repeatable changes. - camlock back plate compatibility with D1-6 spindles - precise registration for accurate turning - simple, repeatable chuck seating and removal

✝️
