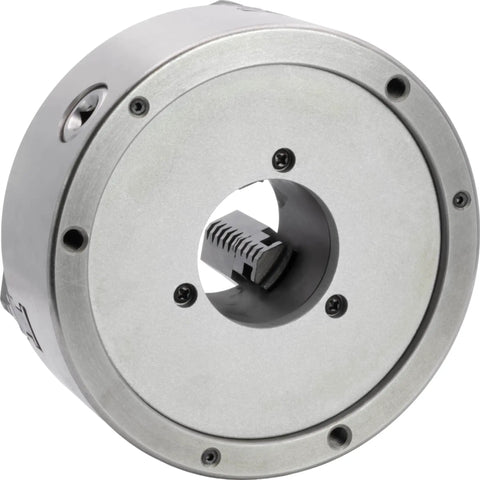

8 Inch 3 Jaw Self Centering Lathe Chuck With D1 6 Camlock Backing Plate Scroll Style Two Piece Reversible Jaws For Extra Clamp Range Built Like A Workhorse With Quench Hardened Steel Inner Mechanisms
✔️ 7 7/8 in body, 2 9/16 in through-hole, reversible jaws; camlock plate
The 8 inch self-centering lathe chuck is a rugged two-piece jaw design built for precise centering on metalworking lathes. It's commonly used for turning, facing, and boring operations when symmetry and repeatable grip matter. This combo includes the lathe chuck, adapter plate, chuck key, and mounting bolts, ready to mount on your spindle.
✅ Body diameter: 7 7/8 in (200 mm)
✅ Through-hole diameter: 2 9/16 in (65.1 mm)
✅ Workpiece OD range: 0.16-7.87 in (4.1-200 mm)
✅ Workpiece ID range: 2.56-7.87 in (65.1-200 mm)

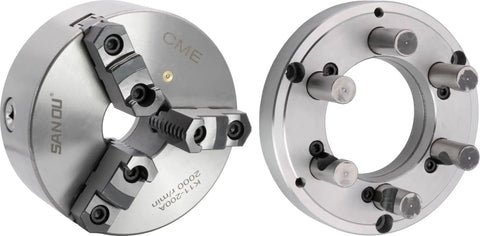

✅ Includes: lathe chuck, adapter plate, chuck key, mounting bolts

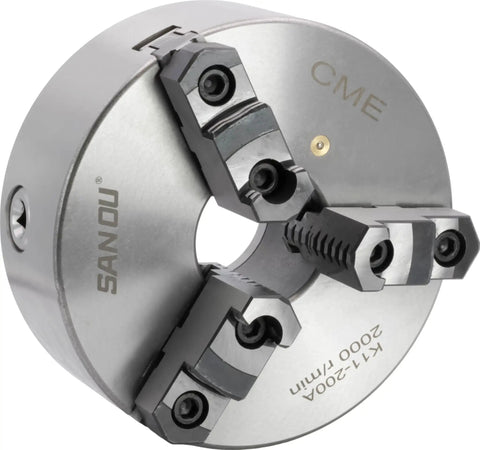

✅ Two-piece reversible jaws for extended clamp range
💡 What is a self-centering lathe chuck used for in metalworking and how does the camlock backing plate help?
This handy tool keeps round stock centered and gripped during turning, boring, and facing.

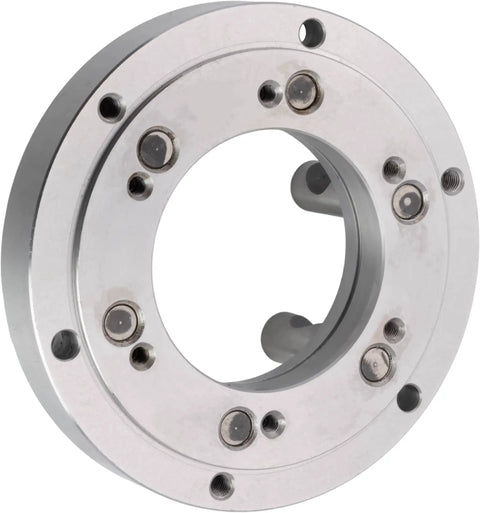

- High-precision cylindrical grip- Quick camlock mounting plate for fast changes
- Compatible with scroll-style three-jaw chucks
✝️
