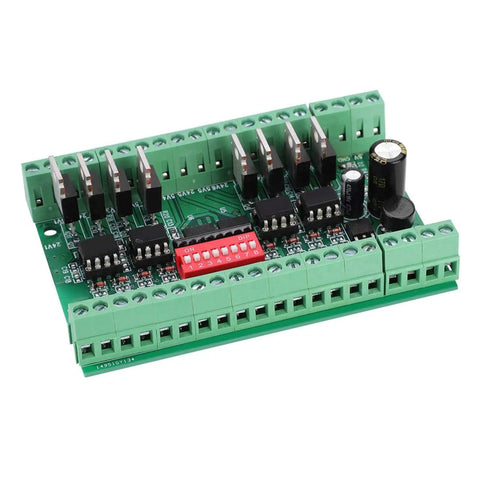

8 Channel NPN and PNP to NPN Level Converter Module For 5V And 24V Signals, Fast 10 MHz Optocoupler Isolation, Safe Level Shifting And Easy Microcontroller Interface For DIY Projects And Logic Boards
Regular price
$88.88
Sale price$150.00you save $61.12
8-Channel Level Converter Module: 5V/24V Input, 1 Unit Pack
✔️ 8-channel opto-isolated level shifter, 10 MHz, 100 mA output
✅ DIP switch input level selection for each channel
✅ Optocoupler isolation between input and output for noise reduction
✅ Output current up to 100 mA per channel
✅ Bandwidth rated at 10 MHz for fast switching
✅ Compatible with common cathode or common anode PLC interfaces

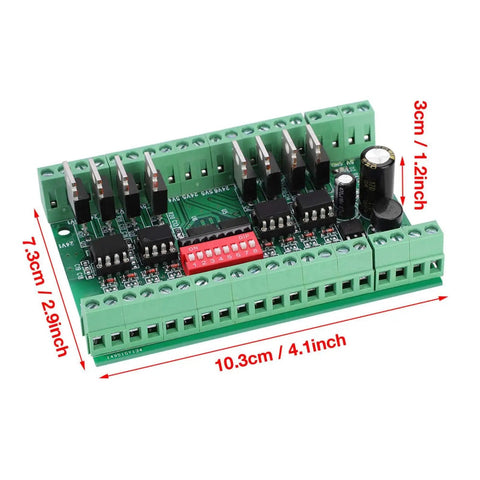

✅ Size: approx 103 mm x 73 mm x 30 mm / 4.1 in x 2.9 in x 1.2 in; Weight ~100 g
✅ Pack: 1 unit (1 x level converter)
✔️ 8-channel opto-isolated level shifter, 10 MHz, 100 mA output

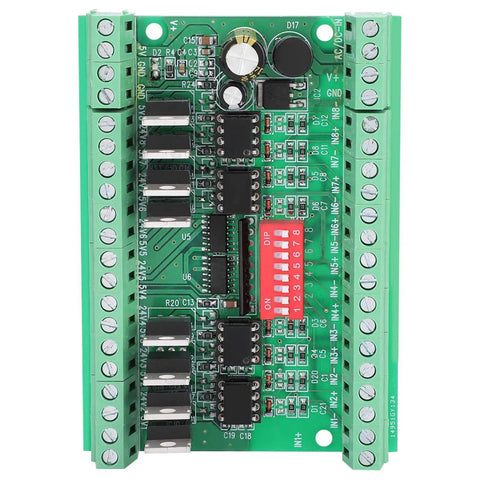

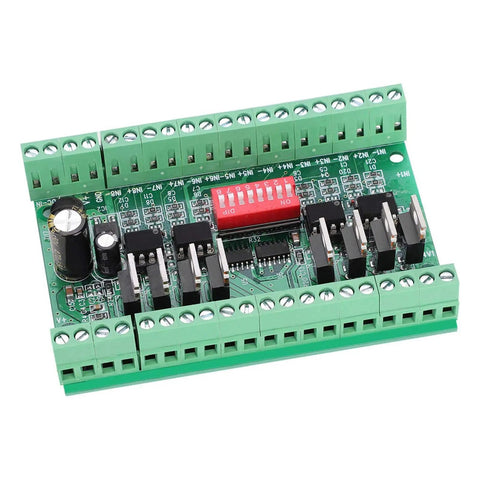

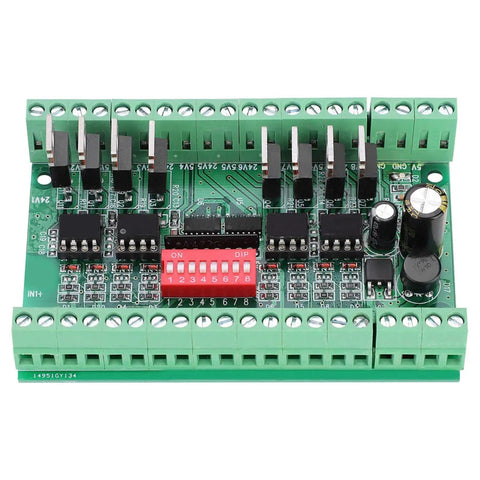

This 8-channel level converter module lets you shift signals between 5V MCUs and 24V PLC logic with optocoupler isolation for noise reduction. Each channel can be configured via DIP switches to 5V or 24V input; 24V level output is NPN open-collector and can handle up to 100 mA per channel. It supports 8 channels concurrently for fast control signaling. Pack: 1 unit.
✅ 8-channel level conversion: 5V/24V input, 5V/24V output, NPN OC✅ DIP switch input level selection for each channel
✅ Optocoupler isolation between input and output for noise reduction
✅ Output current up to 100 mA per channel
✅ Bandwidth rated at 10 MHz for fast switching
✅ Compatible with common cathode or common anode PLC interfaces
✅ Size: approx 103 mm x 73 mm x 30 mm / 4.1 in x 2.9 in x 1.2 in; Weight ~100 g
✅ Pack: 1 unit (1 x level converter)
💡 What is an 8-channel level converter used for in PLC and MCU projects?
It’s handy for safe voltage shifting and signal isolation in control systems.
- handy for bridging 5V MCUs with 24V field devices
- optocoupler isolation reduces interference and ground loops
- supports eight channels with DIP switch input level selection
