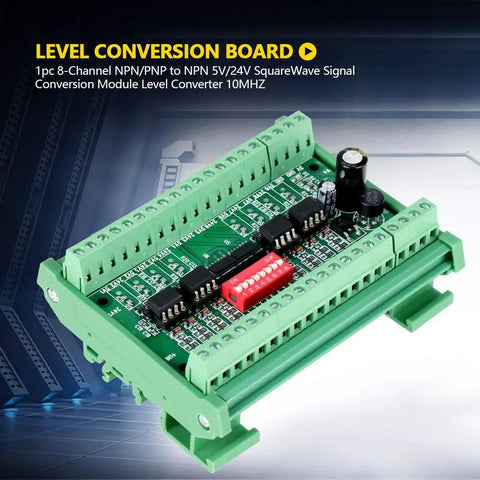

8 Channel Level Converter For 5V To 24V And 24V To 5V NPN PNP To NPN Square Wave Plug And Play Interface Module With Optocoupler Isolation 10 MHz Performance Ideal For PLCs MCUs And Sensor Or Automation Projects
✔️ 8-channel, 5V/24V input, 24V OC output, optocoupler isolation

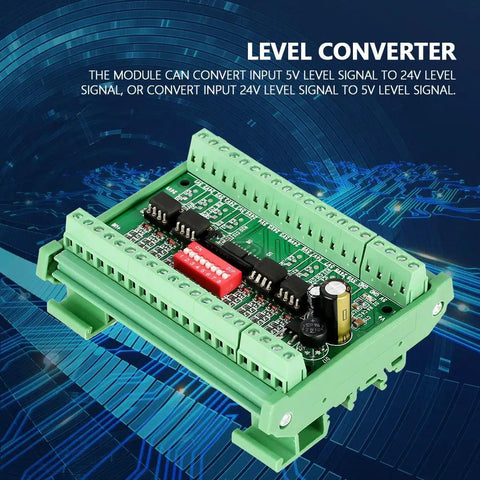

This eight-channel level converter translates 5V logic to 24V levels and back, letting PLCs, MCUs, and sensors talk cleanly. It supports DIP-switch input level selection and optocoupler isolation to minimize interference in automation environments.

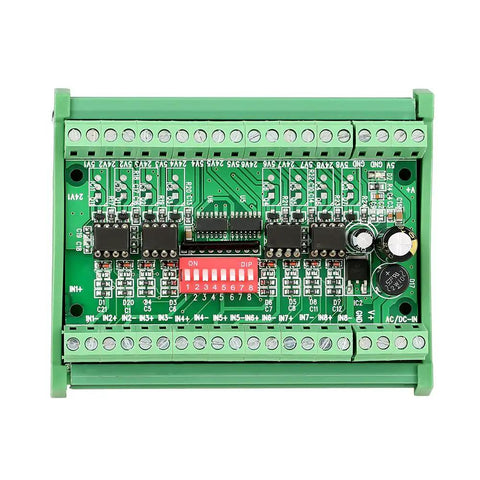

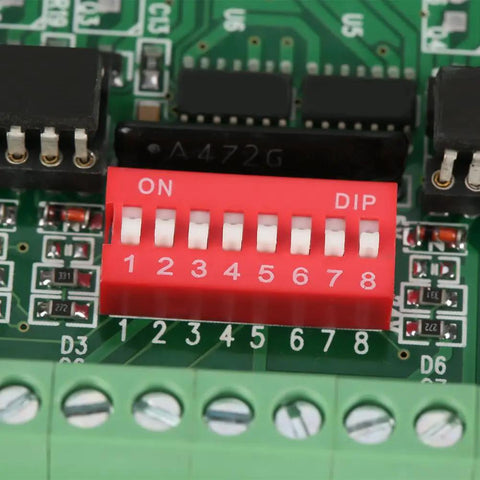

✅ 8 channels with DIP switches to set input level 5V or 24V
✅ 24V output is open-collector NPN per channel with up to 100 mA; testing usually uses a 10 kΩ resistor
✅ Optocoupler isolation between input and output to improve anti-interference capability
✅ Compatible with common cathode or common anode PLC interfaces per European and Japanese standards
✅ 10 MHz bandwidth for fast, clean square-wave signals
✅ Input power: 7-35V for 5V conversion; 24V input for 24V conversion

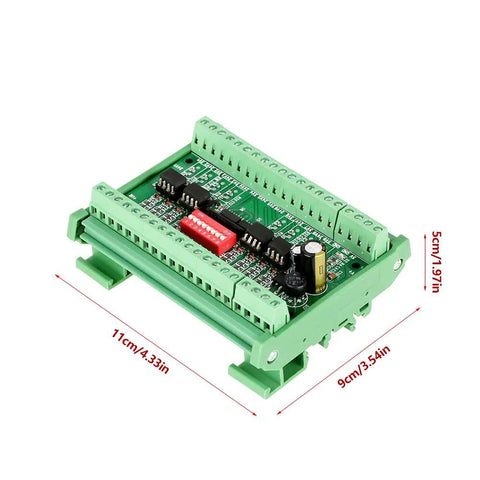

✅ Size: 110 mm x 90 mm x 50 mm (4.3 in x 3.5 in x 2.0 in); Weight approx 170 g
💡 What is a level shifter used for in automation and control systems? It's handy for bridging voltage domains among PLCs, MCUs, and sensors. - Handy for connecting 5V logic to higher voltage devices - Reduces noise with optocoupler isolation - DIP-switch input settings make setups easy - Great for automation projects that involve mixed voltages
