8 Channel DIN Rail Power Distribution Fuse Block For DC 5 To 32V, Plug And Play Top Wiring Terminal, Expandable System, 20A Per Channel And 20A Total, 7.62mm Pitch, Supports 26 To 10 AWG Wiring

8-Channel DIN Rail Power Block for DC 5-32V, Plug & Play
✔️ 8-channel DIN rail power block, 20A max per channel, expandable

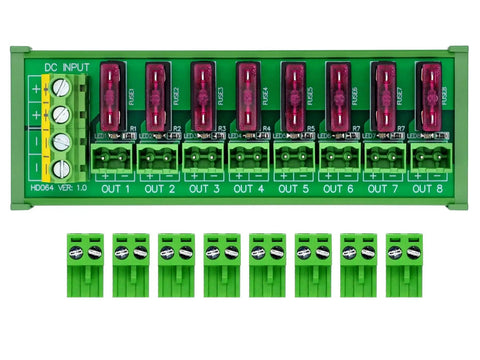

This compact eight-channel DIN rail power distributor takes a 5-32 V DC input and feeds eight outputs via top wiring terminal blocks. It supports expansion by linking to other modules and mounts on standard 35 mm DIN rails. Each channel has a green LED to show status.

✅ Operating voltage: DC 5 to 32V
✅ Total current: 20A input/output
✅ Per-position output: 3A, up to 10A per channel with fuse change

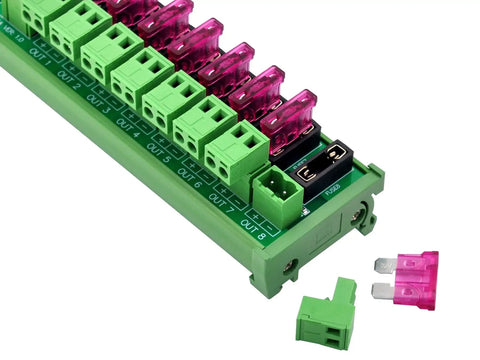

✅ Pluggable fuse holder supports medium blade ATO/ATC fuses
✅ 8-position top wiring terminal blocks; LED per channel indicates status
✅ Wire sizes: input 26-10 AWG; output 28-12 AWG
✅ DIN rail carrier: nylon, 35 mm width; FR-4 PCB; UL/CE/CQC certified

💡 What is a DIN rail power distribution block used for in DC control systems?

Designed to split a single DC supply into protected outputs in compact panels.

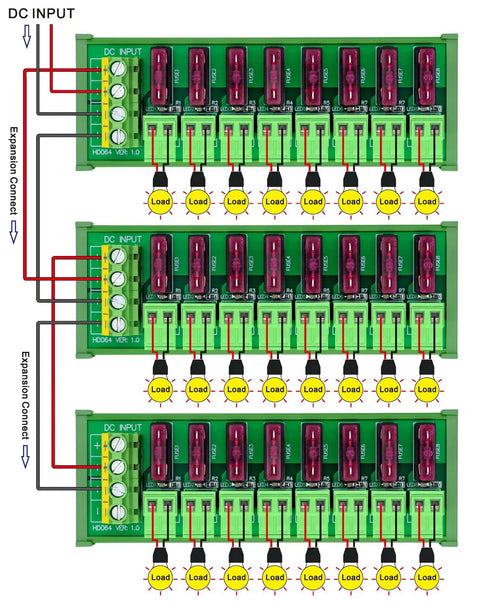

- dc power distribution for control panels and automation gear - per-channel fuse protection for safe operation - DIN rail mounting for tight, organized enclosures - expansion-ready with other modules on the same rail ✝️
