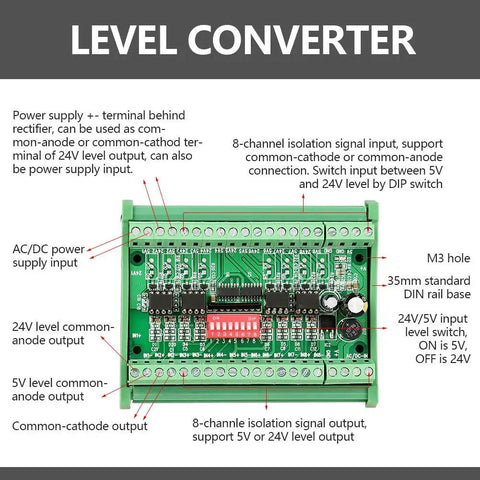

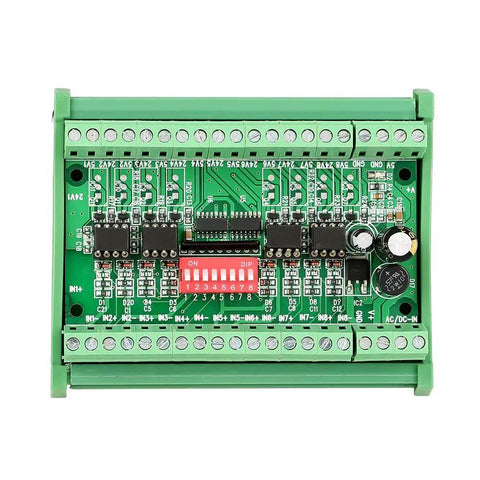

8 Channel 5V To 24V Voltage Level Translator Module With PNP NPN Signal Converter Square Wave 10MHz Board For Microcontrollers And Industrial Projects With Strong Anti Interference And Isolation
✔️ 8-channel 5V/24V level shift on a single board with opto-isolation

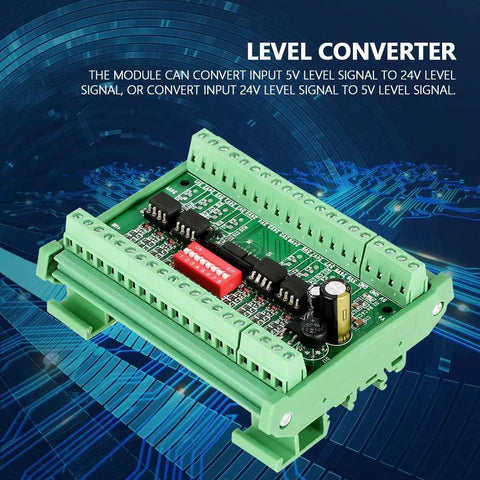

This eight-channel voltage level translator module lets signals move safely between 5V microcontrollers and 24V industrial PLCs or other control gear. It uses optocouplers for isolation, helping prevent noise and ground-loop issues in automation projects and bus systems.
✅ 8-channel level translator supports 5V↔24V translation and 5V↔5V or 24V↔24V as needed

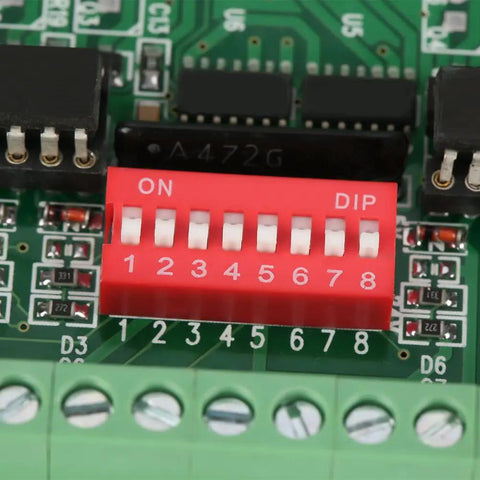

✅ DIP-switch input level setting for easy configuration
✅ Output is 24V NPN open-collector with ~100mA drive
✅ Optocoupler isolation improves anti-interference and protects inputs
💡 What is a voltage level translator module used for in microcontroller and PLC interfaces?
This handy device lets signals move safely between devices with different logic levels.
- Bridges 5V logic with 24V devices
- Provides opto-isolation to reduce interference
- Supports 8 channels with DIP-switch input level settings
