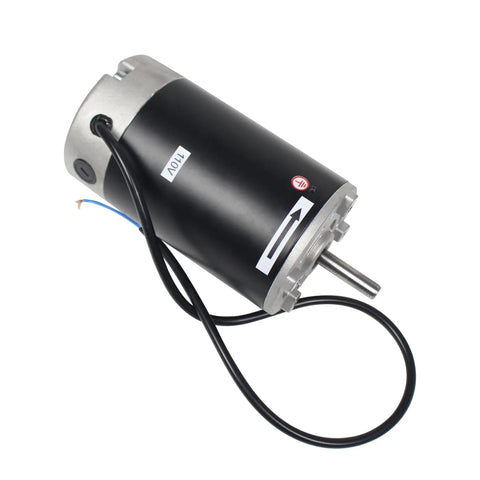

750W DC Brushed Spindle Motor For Mini Metal Lathe Machine 110V 6000 RPM With M10 Shaft 40mm Length And 93mm Diameter Beefy Torque Replacement Part For 210 Series Lathes

750W DC Spindle Motor for Mini Lathe - 110V, 6000 RPM
✔️ 750W DC motor, 93mm dia, M10 shaft, 164mm length, 1pc

This 750W DC brushed spindle motor is a replacement part designed for 110V lathes, commonly used on 210 series mini metal lathes. It delivers high torque for smooth turning and is suitable as an upgrade or replacement for compatible models. It must be powered via the lathe control board to convert AC to DC; not directly connected to 110V AC.

✅ Motor Power: 750W
✅ Voltage: 110V AC (lathe drive DC conversion required)
✅ Type: DC motor
✅ Material: Iron
✅ Max Speed: 6000 rpm

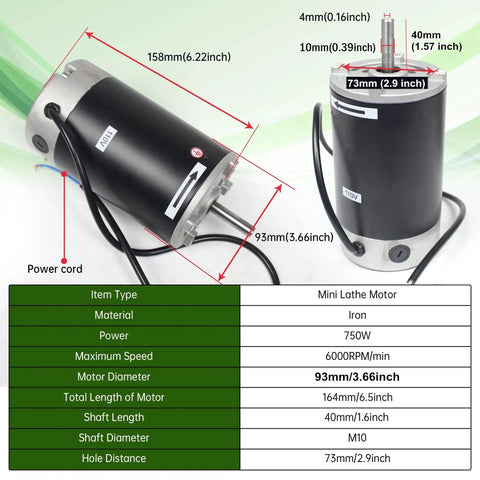

✅ Total Length: 164mm (6.45 in)
✅ Shaft Length: 40mm (1.57 in)
✅ Shaft Diameter: M10 (φ10mm)
✅ Hole Distance: 73mm (2.9 in)
✅ Diameter: 93mm (3.66 in)
✅ Applications: 210 MX210 CD-210V 8x16 220x400 220x600 220x750

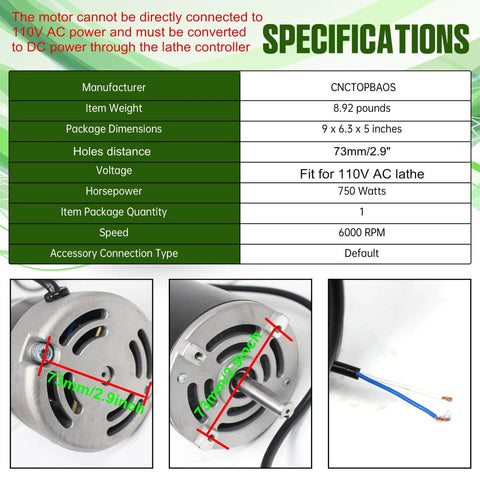

✅ Note: Must be powered via lathe control board (not direct AC input)

💡 What is a spindle motor used for in small metal lathe machines?

This handy component powers the spindle in small metal lathes, enabling turning and facing tasks. - It provides controlled torque up to 6000 RPM for efficient cuts. - It requires DC power through the lathe control board, not direct AC. - Iron construction ensures durability during heavy operations. - Used as a replacement part for compatible 210 series lathes.
