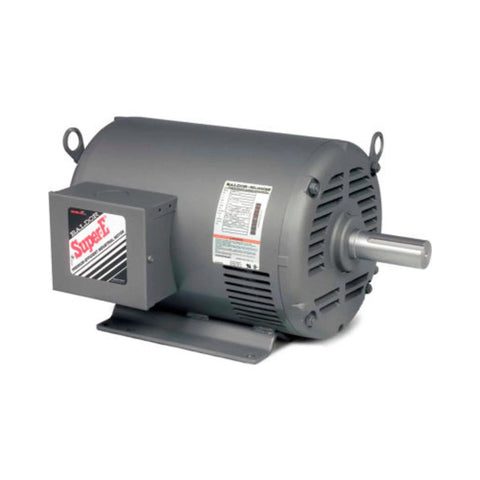

7.5 HP Electric Motor Single Unit, 208-230/460V 3-Phase 60Hz, 1770 RPM, 213T Frame, 1.15 SF, B Insulation, OPSB Enclosure, NEMA A, 91.7% Efficiency, Sealed Ball Bearings, EHM3311T
✔️ 208-230/460V 3-Phase, 60Hz, 1770 RPM, 213T frame, 21/9.6 A, OPSB
This single 7.5 HP three-phase industrial electric motor is built for pumps, conveyors, compressors and general plant equipment where durable sealed ball bearing performance is needed.
✅ Catalog: EHM3311T; Baldor type 3733M; Spec 37J637S186G1✅ Horsepower: 7.5 HP; RPM: 1770; Phase: 3; 60 Hz
✅ Voltage: 208-230/460V; Full load amps: 21-19.2/9.6
✅ Frame: 213T; Service Factor: 1.15; Rating: 40C AMB-CONT
✅ Insulation: Class B; NEMA Design A; Locked rotor code J
✅ Efficiency: 91.7% F.L.; Power Factor: 0.79; Enclosure: OPSB
✅ Bearings: DE 6307, ODE 6206 sealed ball bearing; mount F1
✅ Base: RG; Mechanical spec 37J637; Electrical spec 37WGS186
💡 What are the benefits of sealed ball bearing three-phase motors for industrial machinery? Sealed ball bearing motors are handy for extending service intervals and keeping contaminants out while delivering steady torque. - Longer service life thanks to sealed ball bearing protection and reduced lubrication loss, ideal for pumps and conveyors. - Better energy use with high full-load efficiency and consistent power factor; suitable for upgrades like ceramic or coated bearings. - Standard 213T frame and F1 mount make swaps and integration with linear slide unit driven setups or gearbox couplings straightforward.
