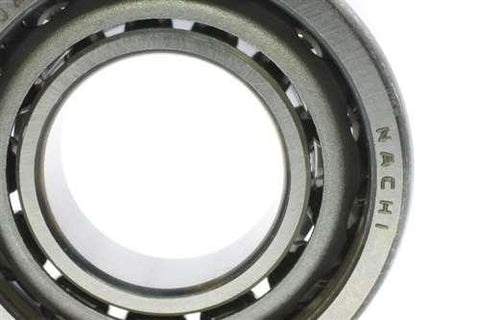

7308 Nachi Angular Contact Bearing C3 Japan 40x90x23 Bearings
Type: Nachi Angular Ball Bearing
Cage: Steel Cage
Dimensions: 40mm x 90mm x 23mm/Metric
ID (inner diameter)/Bore: 40mm
|7308 Nachi Angular Ball Bearing|
40 Contact Angle
40mm x 90mm x 23mm
Made in Japan
7308 Nachi Angular Ball Bearing, bearing is 40 Contact Angle, Steel Cage and Flush Ground, Made in Japan, inner diameter is 40mm, outer diameter is 90mm and width is 23mm.
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
