VXB

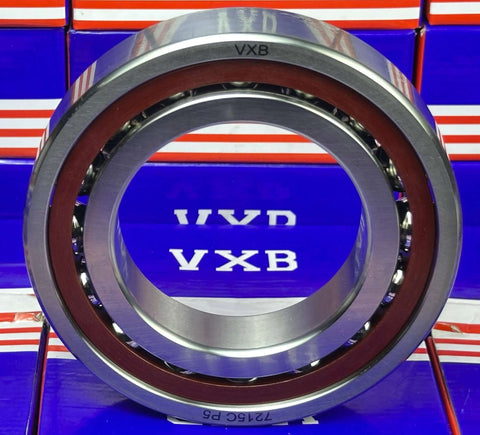

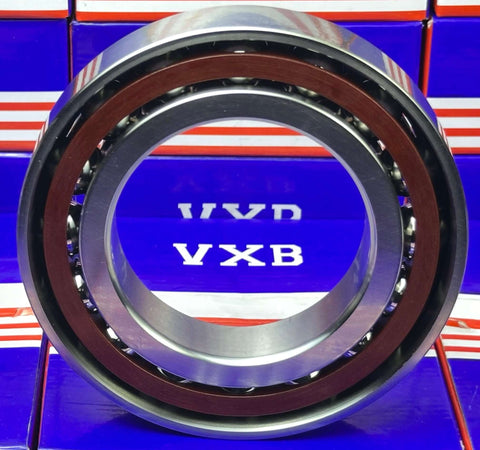

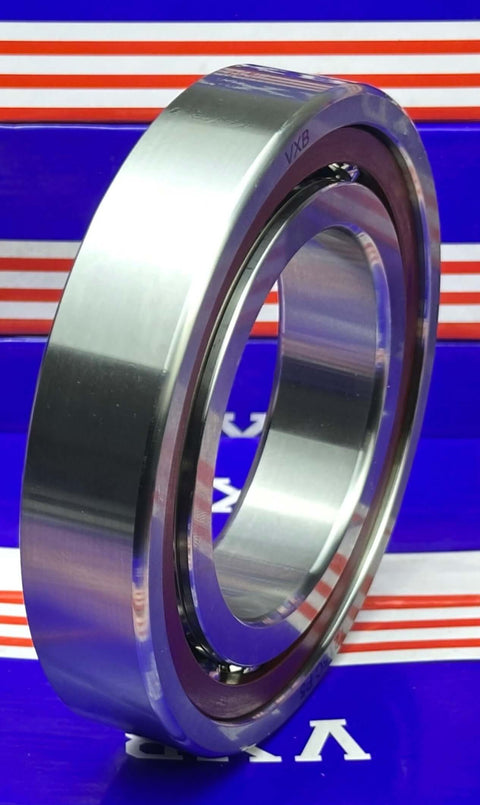

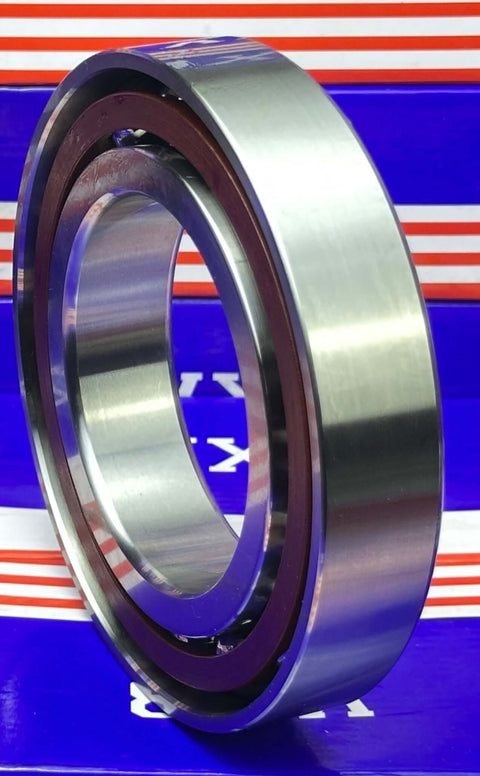

7215C P5 Angular Contact Bearing 75x130x25 ABEC-5 Bearing

Regular price $88.88 Sale price$316.99you save $228.11
SKU: 7215CP5-ABEC-5
UPC: 00193019171691
Item: 7215C P5 Ball Bearing
Type: Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-5 (P5 quality)
Dimensions: 75mm x 130mm x 25mm/Metric
High Precision Ball Bearing
7215C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
75mm x 130mm x 25mm


7215C P5 high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-5 (P5) quality.

  • Item: 7215C P5 Ball Bearing
  • Type: Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 75mm x 130mm x 25mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 130mm
  • Width: 25mm
  • Size: 75 x 130 x 25 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 83,500 N
  • Static load rating Cor: 70,000 N
  • Limiting Speed:
    • Grease Lubrication: 7,800 RPM
    • Oil Lubrication: 11,000 RPM
Dimensions
d D B r r1 a
75mm 130mm 25mm 1.5mm 1mm -0.7mm

7215CP5-ABEC-5


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
