VXB

7209C P4 high precision Angular Contact Bearing 45x85x19 ABEC-7 Quality

Regular price $199.99 Sale price$351.99you save $152.00
SKU: 7209CP4-ABEC-7
UPC: 00193019171578
Item: 7209C P4 Ball Bearing
Type: High Precision Angular Ball Bearing
Cage: PA66 + 30% NTE264B
Quality: ABEC-7 (P4 quality)
Dimensions: 45mm x 85mm x 19mm/Metric
High Precision Ball Bearing
7209C P4 Angular Ball Bearing
15 degrees Contact Angle
Abec-7
45mm x 85mm x 19mm


7209C P4 high precision Angular Ball Bearing with 15 degrees contact angle.bearing is ABEC-7 (P4) quality.

  • 7209C P4 Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-7 (P4 quality)
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 85mm
  • Width: 19mm
  • Size: 45 x 85 x 19 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 41,000 N
  • Static load rating Cor: 29,000 N
    • Grease Lubrication: 12,000 RPM
    • Oil Lubrication: 17,000 RPM

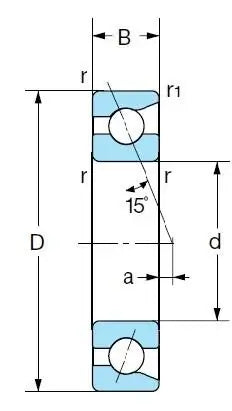

Dimensions
d D B r r1 a
45mm 85mm 19mm 1.1mm 0.6mm -2mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
