Nachi

7205CYP4 Nachi Angular Contact Bearing 25x52x15 Abec-7 Japan Bearings

No reviews
$137.88
SKU: Kit10851
Item: 7205CYP4 Angular Ball Bearing
Type: Nachi Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 25mm x 52mm x 15mm/Metric
High Precision Ball Bearing
7205CYP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Abec-7
25mm x 52mm x 15mm
Made in Japan

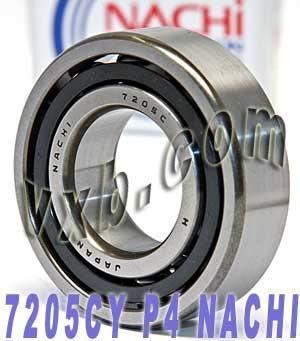

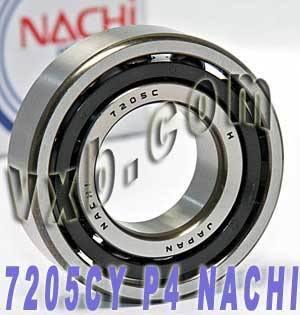

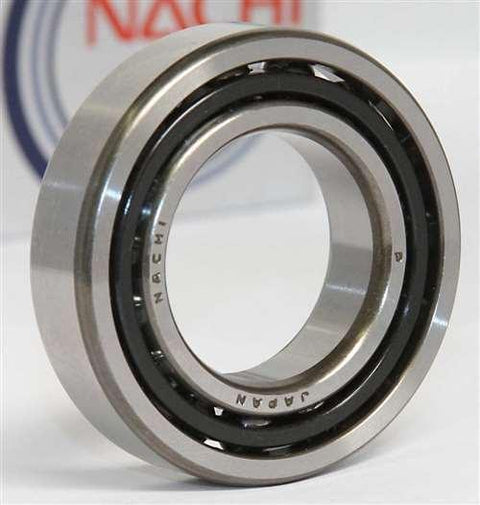

7205CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan, inner diameter is 25mm, outer diameter is 52mm and width is 15mm.

  • Item: 7205CYP4 Angular Ball Bearing
  • Type: Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 25mm x 52mm x 15mm/Metric
  • ID (inner diameter)/Bore: 25mm
  • OD (outer diameter): 52mm
  • Width/Height/thickness: 15mm
  • Size: 25 x 52 x 15 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 16,700 N
  • Static load rating Cor: 10,300 N
  • Limiting Speed:
    • Grease Lubrication: 21,000 RPM
    • Oil Lubrication: 29,000 RPM
  • Made in Japan

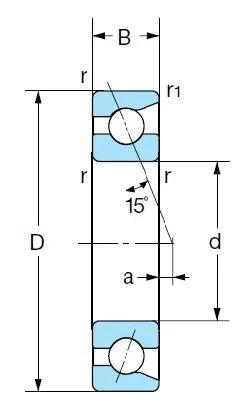

Dimensions
d D B r r1
25mm 52mm 15mm 1mm 0.6mm

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
