Nachi

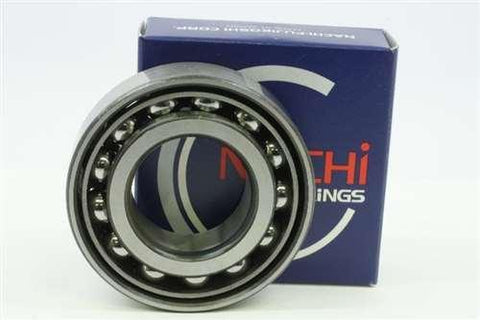

7205BMU Nachi Angular Contact Bearing Brass 25x52x15 Bearings

$69.99
SKU: Kit9970
UPC: 00193019105801
Item: 7205BMU Nachi Ball Bearing
Type: Nachi Angular Ball Bearing
Radial Clearance: C3
Cage: Brass Cage
Dimensions: 25mm x 52mm x 15mm/Metric
7205BMU Nachi Angular Ball Bearing
40 Contact Angle
Brass Cage & Flush Ground
25mm x 52mm x 15mm
Made in Japan


7205BMU Nachi Angular Ball Bearing, bearing is 40 Contact Angle, Brass Cage and Flush Ground, Made in Japan, inner diameter is 25mm, outer diameter is 52mm and width is 15mm.

  • Item: 7205BMU Nachi Ball Bearing
  • Type: Nachi Angular Ball Bearing
  • Radial Clearance: C3
  • Cage: Brass Cage
  • Dimensions: 25mm x 52mm x 15mm/Metric
  • ID (inner diameter)/Bore: 25mm
  • OD (outer diameter): 52mm
  • Width/Height/thickness: 15mm
  • Size: 25 x 52 x 15 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 15,300 N
  • Static load rating Cor: 9,700 N
  • Limiting Speed:
    • Grease Lubrication: 9,500 RPM
    • Oil Lubrication: 14,000 RPM
  • Made in Japan

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
