Nachi
7204CYDUP4 Nachi Angular Contact Bearing 20x47x14 ABEC-7 Bearing
UPC: 00193019091890
Type: Nachi Angular Ball Bearings
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 20mm x 47mm x 14mm/Metric
High Precision Ball Bearings 7204CYDUP4 Nachi Angular Ball Bearings 15 degrees Contact Angle Abec-7 20mm x 47mm x 14mm Made in Japan |
7204CYDUP4 Nachi high precision Angular pair of Ball Bearings with 15 degrees contact angle and Polyamide resin cage, pair of ball bearings is 2 duplex bearings, bearings are ABEC-7 (P4) quality and made in Japan.
|

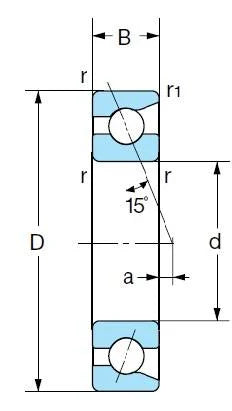

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition.
💡 What Does ABEC-7 Mean?
ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.
ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
