7203C P5 High precision Angular Contact Bearing ABEC-5 17x40x12

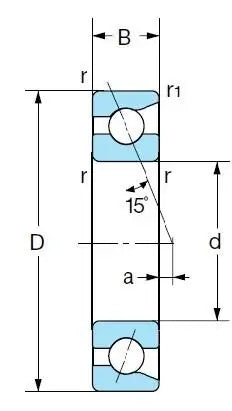

7203C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-5 (P5) quality. 7203C P5 inner diameter is 17mm, outer diameter is 40mm, and width is 12mm.

• Item: 7203C P5 Ball Bearing
• Type: High Precision Angular Ball Bearing
• Cage: PA66+ 30% NTE264B
• Quality: ABEC-5 (P5 quality)
• Dimensions: 17mm x 40mm x 12mm/Metric
• ID (inner diameter)/Bore: 17mm
• OD (outer diameter): 40mm
• Width/Height/thickness: 12mm
• Size: 17 x 40 x 12 mm
• Quantity: One Bearing
• Dynamic load rating Cr: 11,300 N
• Static load rating Cor: 7,400 N
• Limiting Speed:
  • Grease Lubrication: 40,000 RPM
  • Oil Lubrication: 60,000 RPM
