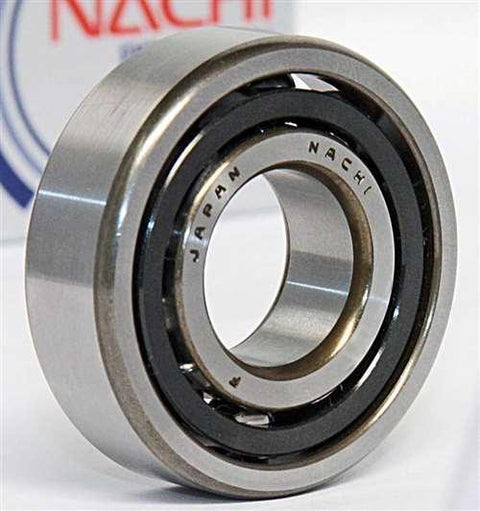

7201CYP4 Nachi Angular Contact Bearing 12x32x10 Abec-7 Japan Bearings
Type: Nachi Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 12mm x 32mm x 10mm/Metric
|High Precision Ball Bearing|
7201CYP4 Nachi Angular Ball Bearing

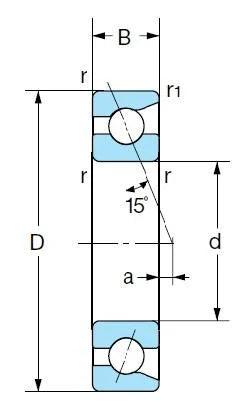

15 degrees Contact Angle
12mm x 32mm x 10mm
Made in Japan
7201CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, ABEC-7 (P4) quality and made in Japan, inner diameter is 12mm, outer diameter is 32mm and width is 10mm.
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
