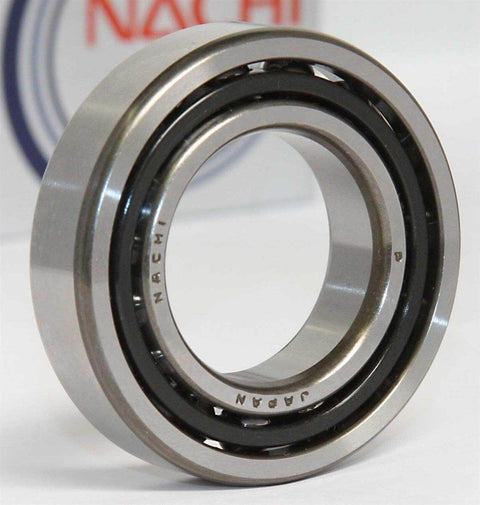

7011CYDUP4 Nachi Angular Contact Bearing 55x90x18 Abec-7 Japan Bearings

No reviews
UPC: 00193019085103
Item: 7011CYDUP4
Type: Angular Ball Bearing
Dimensions: 55mm x 90mm x 18mm/Metric
Quantity: 2 Bearings
Precision Rolling Bearing
7011CYDUP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Polyamide resin cage
55mm x 90mm x 18mm
Made in Japan

7011CYDUP4 Nachi Angular Ball Bearing, Bearing is Precision Rolling, bearing is 15 degrees Contact Angle, Polyamide resin cage and Abec-7, Made in Japan, inner diameter is 55mm, outer diameter is 90mm and width is 18mm.

  • Item: 7011CYDUP4 Angular Ball Bearing
  • Type: Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7
  • Dimensions: 55mm x 90mm x 18mm/Metric
  • Bearing Inner Diameter: 55mm
  • Bearing Outer Diameter: 90mm
  • Width/Height/thickness; 18mm
  • Size: 55 x 90 x 18 mm
  • Quantity: Two Bearings
  • Brand: NACHI Made in Japan

d D B r r1
55mm 90mm 18mm 0.6mm 0.3mm

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
