Nachi

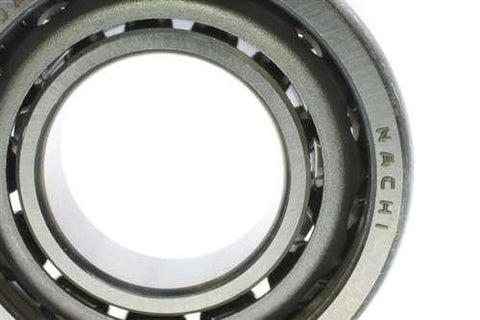

7008CYDUP4BNLS Nachi Angular Contact Bearing 40x68x15:Abec-7:Japan
UPC: 00193019090916
Type: Nachi Angular Ball Bearing

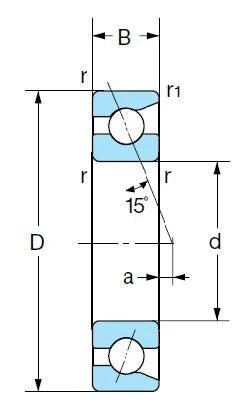

Dimensions: 40mm x 68mm x 15mm/Metric
Bearing Inner Diameter: 40mm
Bearing Outer Diameter: 68mm
7008CYDUP4BNLS Nachi Angular Abec-7 Ball Bearing 40mm x 68mm x 15mm 15 Contact Angle Polyamide resin cage Made in Japan |
|
7008CYDUP4BNLS Nachi Angular Ball Bearings, 15 Contact Angle, Polyamide resin cage, Abec-7 Made in Japan, 7008CYDUP4BNLS inner diameter is 40mm, 7008CYDUP4BNLS outer diameter is 68mm, 7008CYDUP4BNLS width is 15mm.
|
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
