Nachi

7008CYDUP4 Nachi Angular Contact Bearing 40x68x15 Abec-7 Bearings

No reviews
$384.88
SKU: Kit10875
Item: 7008CYDUP4 Angular Ball Bearing
Type: Nachi Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 40mm x 68mm x 15mm/Metric
7008CYDUP4 Nachi Angular Contact Abec-7 Ball Bearing
40mm x 68mm x 15mm
Made in Japan

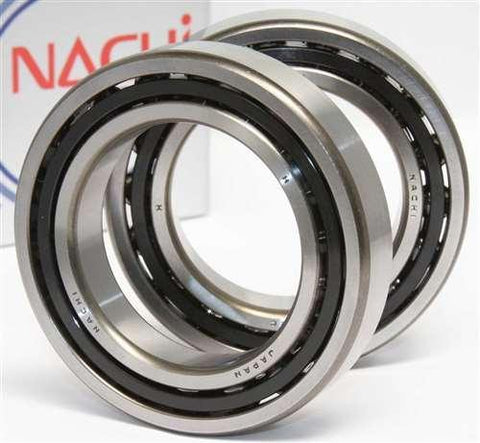

7008CYDUP4 Nachi high precision Angular pair of Ball Bearings with 15 degrees contact angle and Polyamide resin cage, pair of ball bearings is 2 duplex bearings, bearings are ABEC-7 (P4) quality and made in Japan.

  • Item: 7008CYDUP4 Angular Ball Bearing
  • Type: Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 40mm x 68mm x 15mm/Metric
  • Bearing Inner Diameter: 40mm
  • Bearing Outer Diameter: 68mm
  • Width/Height/thickness; 15mm
  • Size: 40 x 68 x 15 mm
  • Quantity: One Bearing
  • Made in Japan

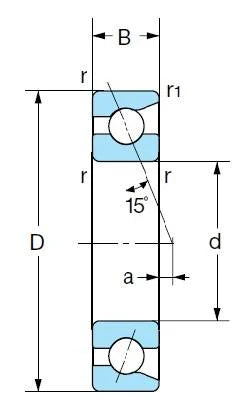

Dimensions
d D B r r1 a
40mm 68mm 15mm 1mm 0.6mm -1.3mm

The raceways of both the outer and inner rings of this bearing kind are made with a set contact angle. These claws are non-separable. Considering that the balls are added using structure, a bigger number of balls can be set up than in the instance of ball bearings. Standard cage materials might be molded on high-strength brass steel artificial or resin. Cage material is dependent upon the bearing service or series and condition. Single-row Angular Contact ball bearings can sustain radial, axial or mix loads any load has to be in 1 direction. This bearing type is usually used to handle the triggered load resulting from the axial force generated by the load that was applied. When mounting two bearings in adjacent places, NACHI provides these mix components (pairs) using pre-adjusted clearance. Paired mix bearings are matched places. Bidirectional loads can be sustained by DF or DB sets.
