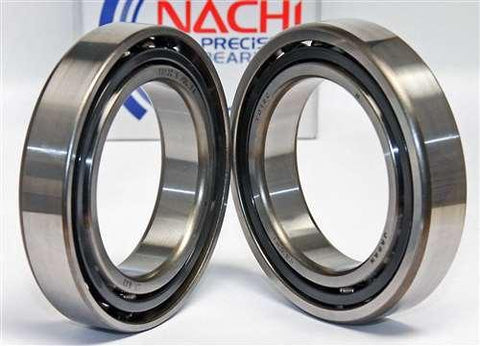

High Precision Ball Bearing 7003CYDUP4 Nachi Angular Ball Bearing 15 degrees Contact Angle Abec-7 17mm x 35mm x 10mm Made in Japan
7003CYDUP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan. 7003CYDUP4 inner diameter is 17mm, 7003CYDUP4 outer diameter is 35mm, 7003CYDUP4 width is 10mm.
Item: 7003CYDUP4 Nachi Ball Bearing
Type: Nachi Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 17mm x 35mm x 10mm/Metric
ID (inner diameter)/Bore: 17mm
OD (outer diameter): 35mm
Width/Height/thickness: 10mm
Size: 17 x 35 x 10 mm
Quantity: Two Bearings
Made in Japan

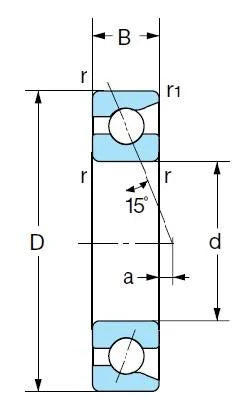

Dimensions(mm)
d
D
B
r
r1
a
17mm
35mm
10mm
0.3~0.6
0.15~0.3
-2mm
The raceways of both the inner and outer rings of this posture kind are made with a contact angle. These bearings are non-separable. A quantity of balls may be installed than in the case of Deep-groove ball bearings, Considering that the balls are added utilizing counter-bore structure. Standard cage substances might be brushed high-strength brass steel artificial or resin. Cage material depends upon the bearing series and or service requirement. Single-row Angular Contact ball bearings can sustain loads, however, any axial load has to be in one direction. This posture type is normally utilized to deal with the load caused by the internal axial force created by the first load that was applied. When mounting two single bearings in adjacent positions, NACHI provides these mix parts (pairs) with pre-adjusted clearance. Combination bearings are sets. Blend or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TO-FACE (DF), or at TANDEM (DT). Bidirectional axial loads can be sustained by DB or DF sets.
