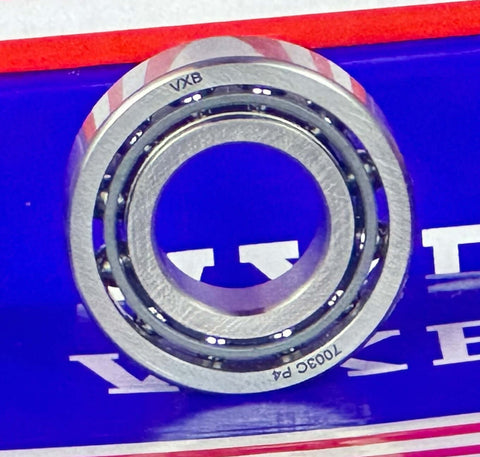

7003C P4 High precision Angular Contact Bearing ABEC-7 17x35x10

7003C P4 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-7 (P4) quality. 7003C P4 inner diameter is 17mm, outer diameter is 35mm, and width is 10mm.

• Item: 7003C P4 Ball Bearing
• Type: High precision Angular Ball Bearing
• Cage: PA66+ 30% NTE264B
• Quality: ABEC-7 (P4 quality)
• Dimensions: 17mm x 35mm x 10mm/Metric
• ID (inner diameter)/Bore: 17mm
• OD (outer diameter): 35mm
• Width/Height/thickness: 10mm
• Size: 17 x 35 x 10 mm
• Quantity: One Bearing
• Dynamic load rating Cr: 6,700 N
• Static load rating Cor: 4,900 N
• Limiting Speed:
  • Grease Lubrication: 45,000 RPM
  • Oil Lubrication: 67,000 RPM
