VXB

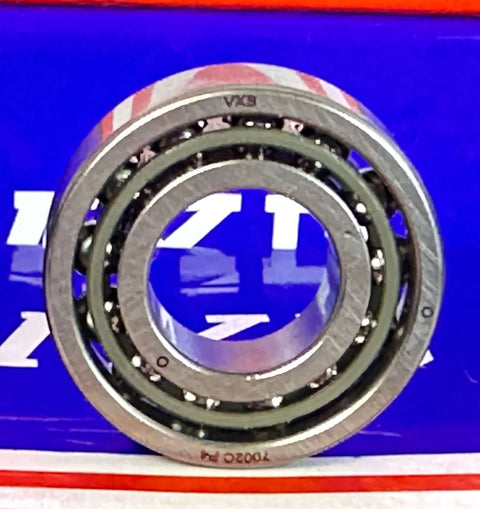

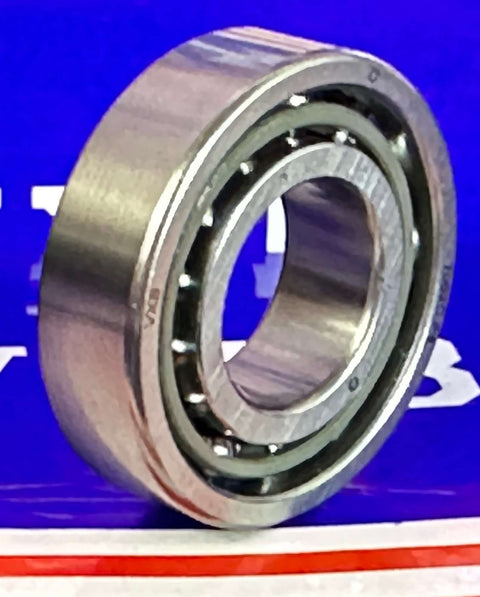

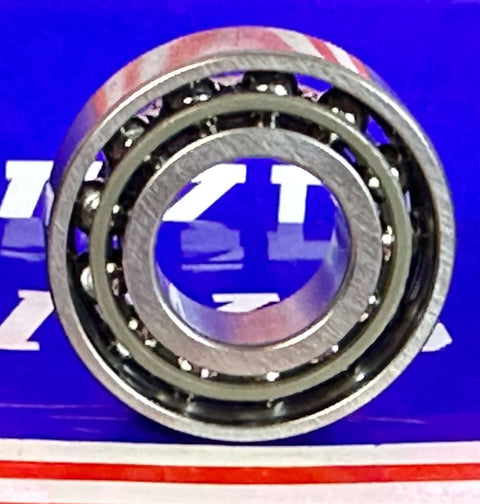

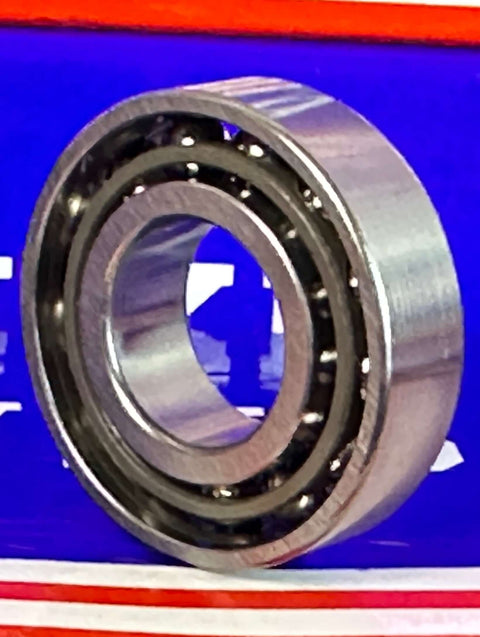

7002C P4 High precision Angular Contact Bearing ABEC-7 15x32x9mm

Regular price $69.99 Sale price$149.99you save $80.00
SKU: 7002CP4-ABEC-7
UPC: 00193019170748
Item: 7002C P4 high precision Ball Bearing
Type: Angular Contact Ball Bearing
Cage: PA66+ 30% NTE264B
Quality: ABEC-7 (P4 quality)
Dimensions: 15mm x 32mm x 9mm/Metric
High Precision Ball Bearing
7002C P4 Angular Ball Bearing
15 degrees Contact Angle
ABEC-7
15mm x 32mm x 9mm


. .

7002C P4 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-7 (P4) quality. 7002C P4 inner diameter is 15mm, outer diameter is 32mm, and width is 9mm.

  • Item: 7002C P4 Ball Bearing
  • Type: High precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 15mm x 32mm x 9mm/Metric
  • ID (inner diameter)/Bore: 15mm
  • OD (outer diameter): 32mm
  • Width: 9mm
  • Size: 15 x 32 x 9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 5,300 N
  • Static load rating Cor: 3,300 N
  • Limiting Speed:
    • Grease Lubrication: 5,000 RPM
    • Oil Lubrication: 7,500 RPM


Dimensions
d D B
15mm 32mm 9mm




💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
