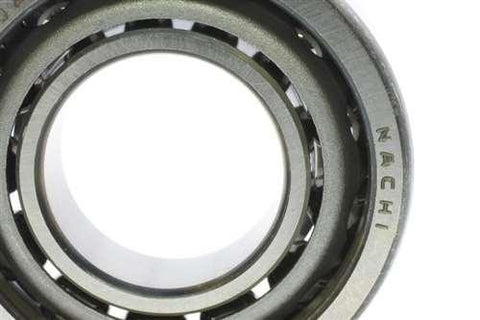

7000CYDUP4BNLS Nachi Angular Contact Bearing 10x26x8 Abec-5 Japan
Type: Nachi Angular Ball Bearings
Dimensions: 10mm x 26mm x 8mm/Metric
Bearing Inner Diameter: 10mm
Bearing Outer Diameter: 26mm
|7000CYDUP4BNLS Nachi Angular Abec-5 Ball Bearings|
10mm x 26mm x 8mm
15 Contact Angle
Polyamide resin cage
Made in Japan
7000CYDUP4BNLS Nachi Angular Ball Bearings, 15 Contact Angle, Polyamide resin cage, Abec-5 Made in Japan, 7000CYDUP4BNLS inner diameter is 10mm, 7000CYDUP4BNLS outer diameter is 26mm, 7000CYDUP4BNLS width is 8mm.
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
