VXB

7" inch Actuator NEMA 23 CNC Ballscrew Linear Motion Slide Rail Table with a Motor

$397.99
SKU: CNC-LINEAR-GUIDE-MOTION-200MM
UPC: 00193019178157
7" inch Actuator NEMA 23 CNC Ballscrew Linear Motion Slide Rail Table with a Motor
21-45 days Delivery





7" inch CNC Ballscrew Linear Motion Slide Rail Table with a Motor
  • Overall Length (mm)= 200mm (7" inch)
  • Overall Height (mm)= 80mm
  • Effective Stroke L(mm)= 0-500mm
  • Diameter: 40mm

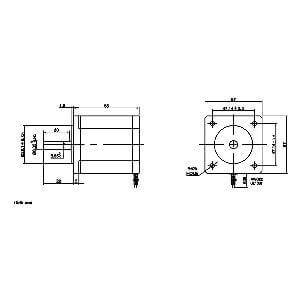

Motor parameters
Step angle Motor flange size(mm) Motor length(mm) Holding torque(N.m) Current (A) Resistance
( Ω)
Inductance

( mH) 		Rotor Inertia
(g.cm⊃2;) 		Lead Wire (No.)
1.8 57 56 0.93
2.0 3.0±20% 3.19 200 4

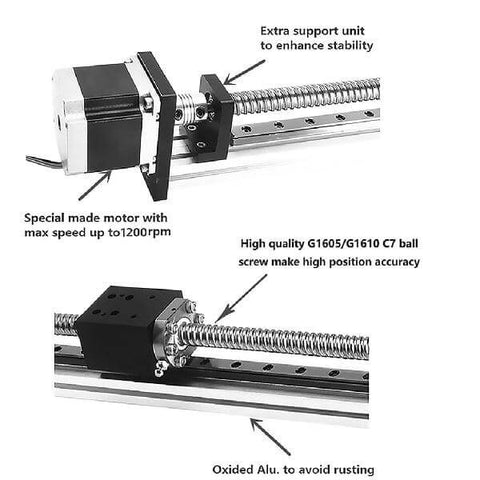

Ball screw parameters
Dia.(mm) Lead(mm) Accuracy Class
16 05 C7
