6920ZZ Nachi Bearing Shielded C3 100x140x20 Japan

No reviews
$631.88
SKU: Kit14560
Item: 6920ZZ Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 100mm x 140mm x 20mm/Metric

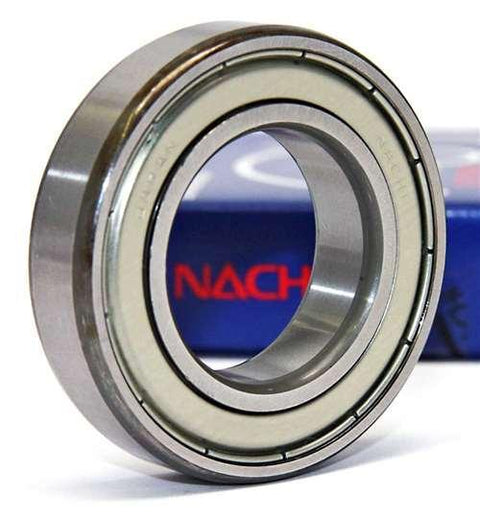

6920ZZ Nachi Bearing
100mm x 140mm x 20mm
Made in Japan


6920ZZ Nachi Bearing, the 6920ZZ inner diameter is 100mm, the 6920ZZ outer diameter is 140mm, 6920ZZ width is 20mm.

  • Item: 6920ZZ Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 100mm x 140mm x 20mm/Metric
  • ID (inner diameter)/Bore: 100mm
  • OD (outer diameter): 140mm
  • Width/Height/thickness: 20mm
  • Size: 100 x 140 x 20 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 42,500 N
  • Static load rating Cor: 36,500 N
  • Limiting Speed:
    • Grease Lubrication: 4,500 RPM
  • Made in Japan

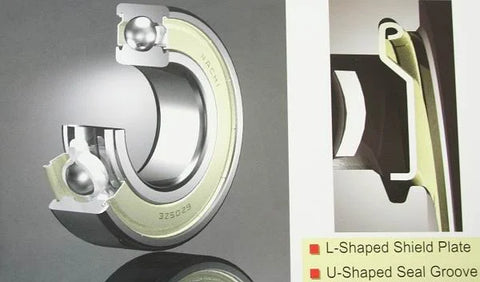

Advanced Shield Design Provides
Superior Protection and Quiet Operation

The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
