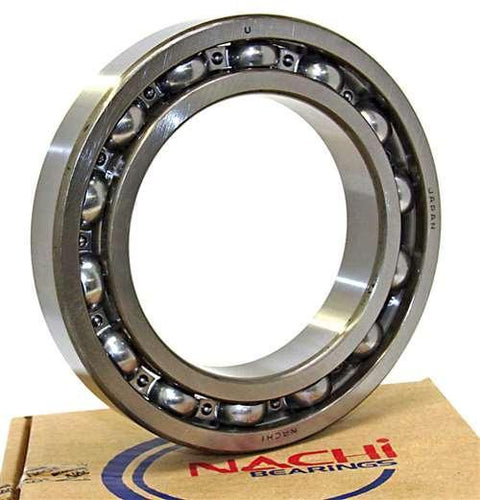

6915 Nachi Bearing Open Japan 75x105x16
Type: Nachi Deep groove Ball Bearing
Dimensions: 75mm x 105mm x 16mm/Metric
ID (inner diameter)/Bore: 75mm
OD (outer diameter): 105mm
|6915 Nachi Open Ball Bearing |
75mm x 105mm x 16mm
Made in Japan
6915 Nachi Bearing, the 6915 inner diameter is 75mm, the 6915 outer diameter is 105mm, 6915 width is 16mm.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a widevariety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make pointcontact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as theouter ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, thisbearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings. Deep Groove ball bearings having an outside diameter => 9 mm and a bore diameter < 10 mm are known asExtra-small ball bearings. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operating atvery high speed or for large diameter bearings. Deep groove ball bearings with seals or shields are standardized. They contain proper amount of grease inadvance.
