Nachi

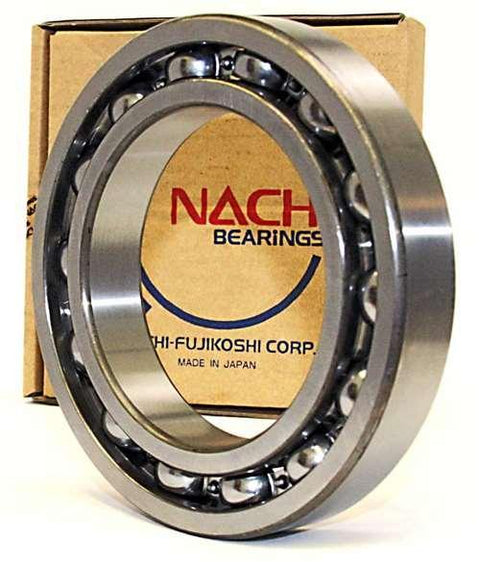

6864 Nachi Bearing Open Japan 320x400x38

$5,805.99
SKU: Kit13560
UPC: 00193019096451
Item: 6864 Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Dimensions: 320mm x 400mm x 38mm/Metric
ID (inner diameter)/Bore: 320mm
OD (outer diameter): 400mm
6864 Nachi Open Ball Bearing
320mm x 400mm x 38mm
Made in Japan


6864 Nachi Bearing, the 6864 inner diameter is 320mm, the 6864 outer diameter is 400mm, 6864 width is 38mm.

  • Item: 6864 Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Dimensions: 320mm x 400mm x 38mm/Metric
  • ID (inner diameter)/Bore: 320mm
  • OD (outer diameter): 400mm
  • Width/Height/thickness: 38mm
  • Size: 320 x 400 x 38 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 164,000 N
  • Static load rating Cor: 218,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,400 RPM
    • Oil Lubrication: 1,600 RPM
  • Made in Japan

Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a widevariety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make pointcontact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as theouter ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, thisbearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings. Deep Groove ball bearings having an outside diameter => 9 mm and a bore diameter < 10 mm are known asExtra-small ball bearings. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operating atvery high speed or for large diameter bearings. Deep groove ball bearings with seals or shields are standardized. They contain proper amount of grease inadvance.
