Nachi

6334 Nachi Bearing Open C3 Japan 170x360x72 Extra Large

$3,317.99
SKU: Kit9893
UPC: 00193019105153
Item: 6334 Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Radial Clearance: C3
Dimensions: 170mm x 360mm x 72mm/Metric
ID (inner diameter)/Bore: 170mm

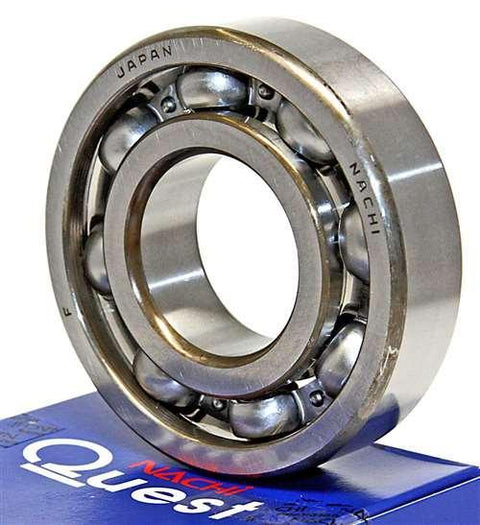

6334 Nachi Bearing
170mm x 360mm x 72mm
Made in Japan


6334 Nachi Bearing, Made in Japan, the 6334 inner diameter is 170mm, the 6334 outer diameter is 360mm, 6334 width is 72mm.

  • Item: 6334 Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Radial Clearance: C3
  • Dimensions: 170mm x 360mm x 72mm/Metric
  • ID (inner diameter)/Bore: 170mm
  • OD (outer diameter): 360mm
  • Width/Height/thickness: 72mm
  • Size: 170 x 360 x 72 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 325,000 N
  • Static load rating Cor: 355,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,800 RPM
    • Oil Lubrication: 2,100 RPM
  • Made in Japan

Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a widevariety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make pointcontact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as theouter ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, thisbearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings. Deep Groove ball bearings having an outside diameter => 9 mm and a bore diameter < 10 mm are known asExtra-small ball bearings. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operating atvery high speed or for large diameter bearings. Deep groove ball bearings with seals or shields are standardized. They contain proper amount of grease inadvance.
