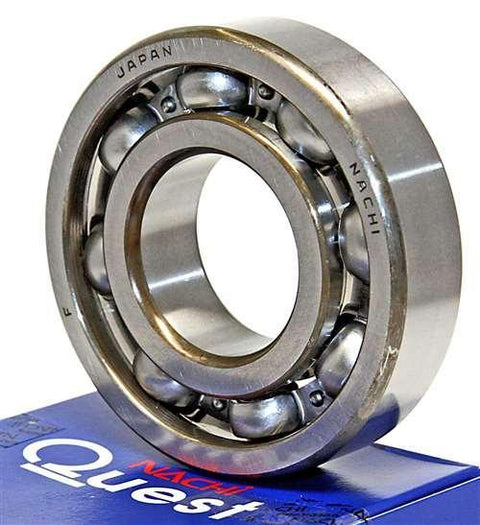

6326 Nachi Bearing Open C3 Japan 130x280x58 Large
Type: Nachi Deep groove Ball Bearing
Radial Clearance: C3
Dimensions: 130mm x 280mm x 58mm/Metric
ID (inner diameter)/Bore: 130mm
|6326 Nachi Bearing|
130mm x 280mm x 58mm
Made in Japan
6326 Nachi Bearing, Made in Japan, the 6326 inner diameter is 130mm, the 6326 outer diameter is 280mm, 6326 width is 58mm.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a widevariety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make pointcontact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as theouter ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, thisbearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings. Deep Groove ball bearings having an outside diameter => 9 mm and a bore diameter < 10 mm are known asExtra-small ball bearings. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operating atvery high speed or for large diameter bearings. Deep groove ball bearings with seals or shields are standardized. They contain proper amount of grease inadvance.
