Nachi

6315-2NSE9NR Nachi Bearing Sealed C3 Snap Ring 75x160x37 Bearings

No reviews
$229.88
SKU: Kit13408
Item: 6315-2NSE9NR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double sealed rubber seals RS/RS1/2RS1
Radial Clearance: C3
Dimensions: 75mm x 160mm x 37mm/Metric

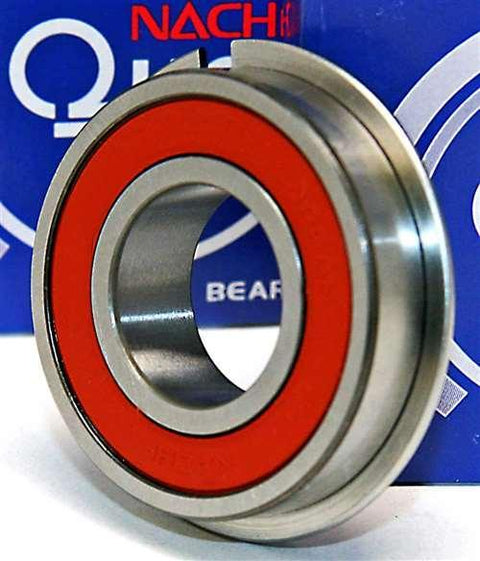

6315-2NSE9NR Nachi Bearing With Snap Ring (C clip)
75mm x 160mm x 37mm
Made in Japan


6315-2NSE9NR Nachi Bearing with a Snap Ring, the 6315-2NSE9NR inner diameter is 75mm, the 6315-2NSE9NR outer diameter is 160mm, 6315-2NSE9NR width is 37mm.

  • Item: 6315-2NSE9NR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double sealed rubber seals RS/RS1/2RS1
  • Radial Clearance: C3
  • Dimensions: 75mm x 160mm x 37mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 160mm
  • Width/Height/thickness: 37mm
  • Size: 75 x 160 x 37 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 113,000 N
  • Static load rating Cor: 77,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,900 RPM
  • Made in Japan

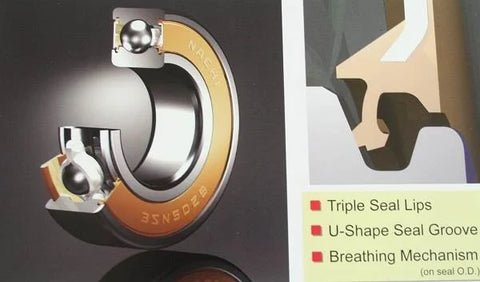

Advanced Seal Design Provides
Excellent Protection and Smooth Operation

The combination of a unique lip design and seal groove provides a labrinth and steady seal contact.Breathing mechanism avoids torque increases caused byinternal pressure variation due to changes in operating temperatures.NSE seals allow NACHI bearings to have constant smooth operation and long service life.

  • Superior in Sealing Out Dust, Dirt, and Contamination
  • Superb Grease Retention
  • Light Torque
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
